DETAIL
- Item No
0000000994
- Type

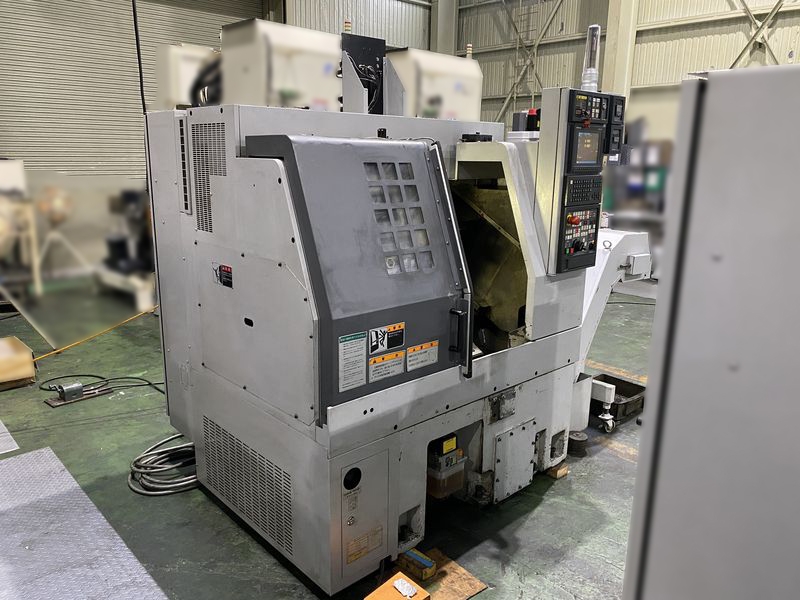

- CNC Lathe
- Maker

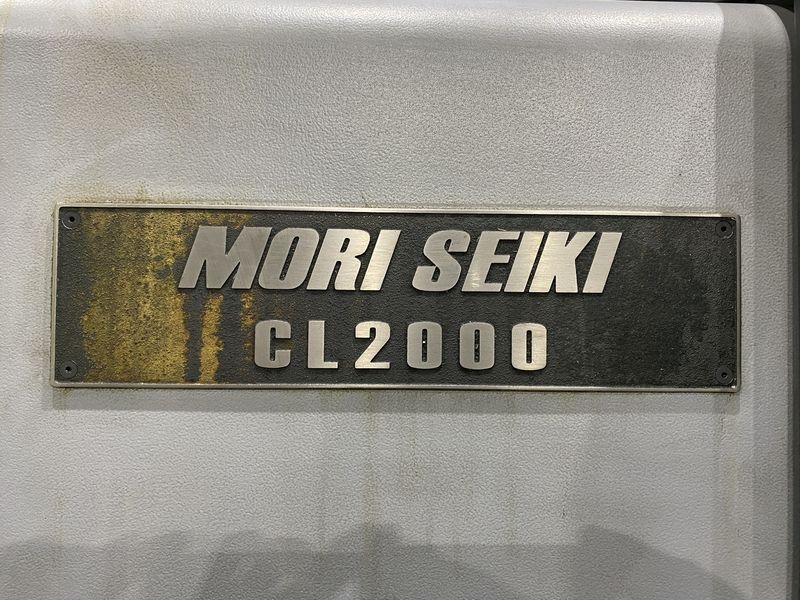

- MORI SEIKI
- Model
- CL-2000A (No.CL201FE3017)
- MFG Year
- 2007
- Movie
- Specification
- 1 2
- Comment

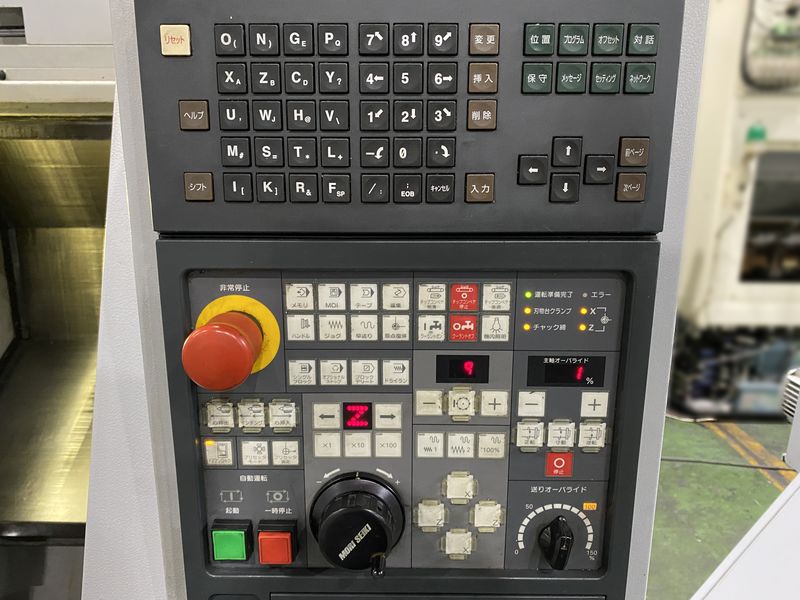

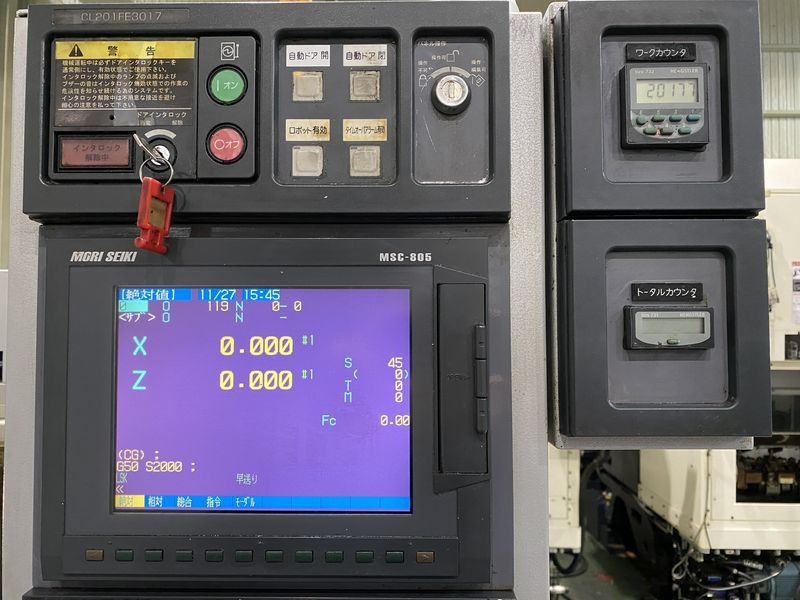

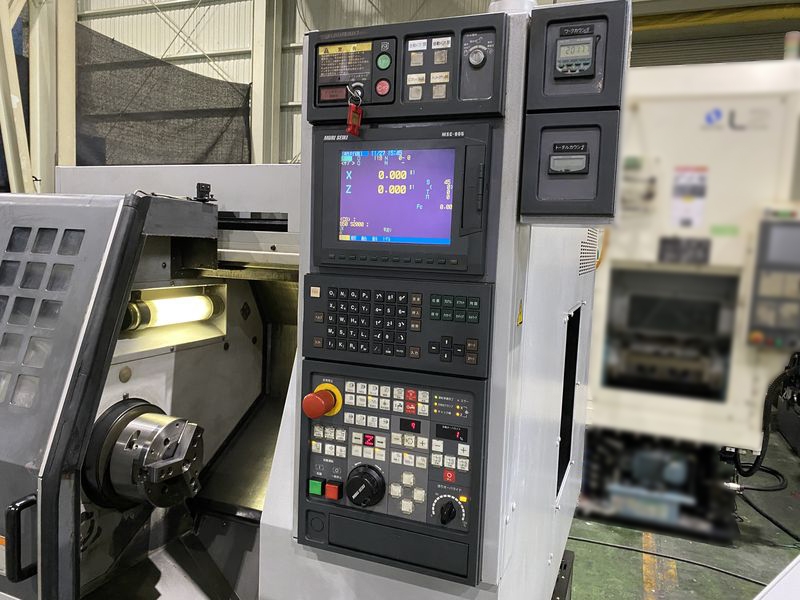

- Controller : MSC-805 (MELDAS)
Swing over bed : φ510 mm
Max. turning diameter : φ440 mm
Standard machining diameter : φ196 mm
Max. turning length : 363 mm
Travel X : 245 Z : 370 mm
Spindle speed : 3,300 rpm
Through-spindle hole diameter : φ61 mm
Spindle taper : JIS A2-6

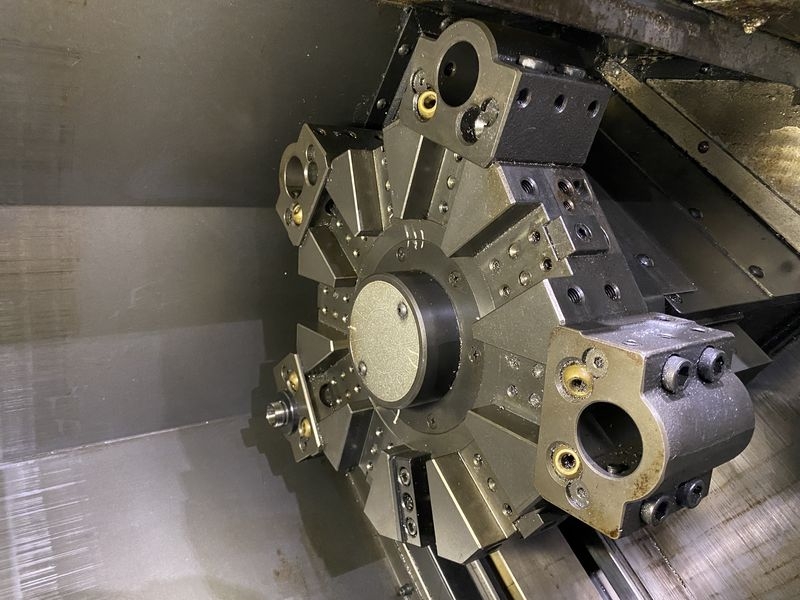

Turret : 10-Angle
Required floor space : 1,545 x 1,704 mm
Machine height : 1,814 mm
Machine weight : 2,800 kg

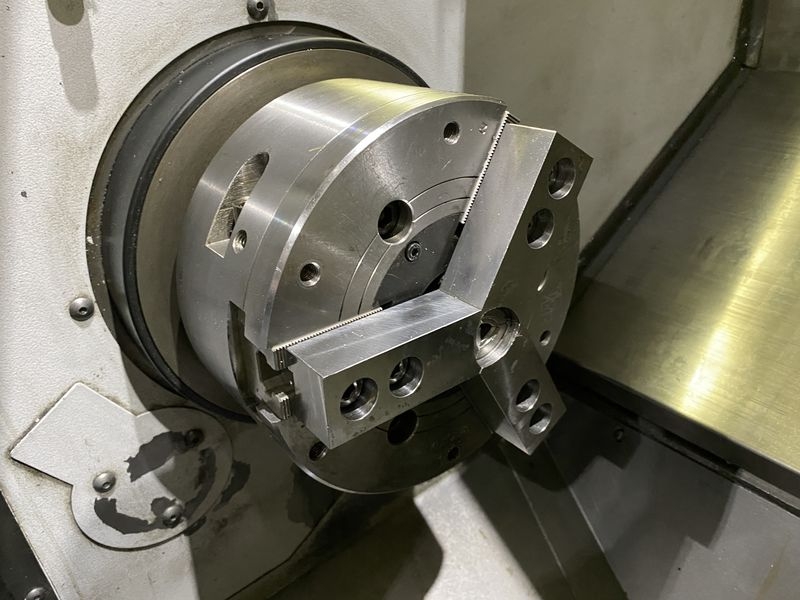

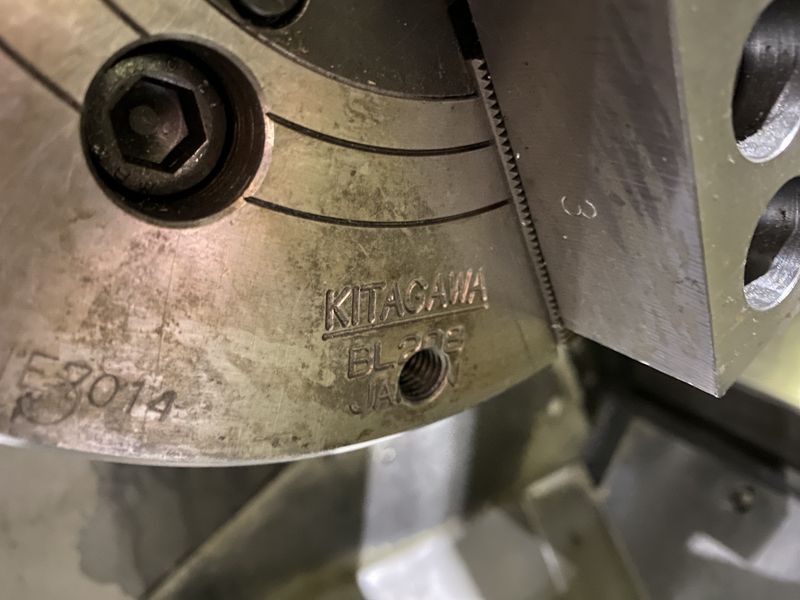

Kitagawa BL208A6 8-inch chuck

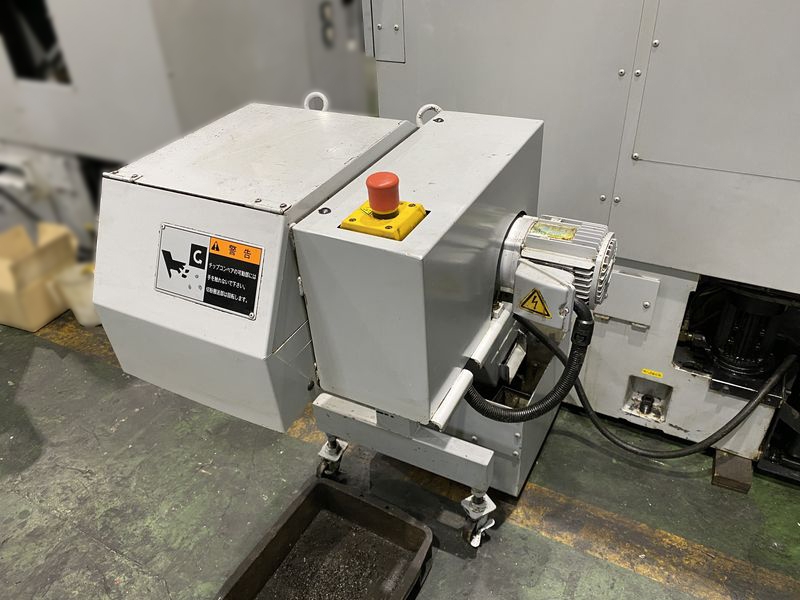

Scraper-type chip conveyor (right-hand discharge)
Mist collector
Chucker specification (without tailstock)

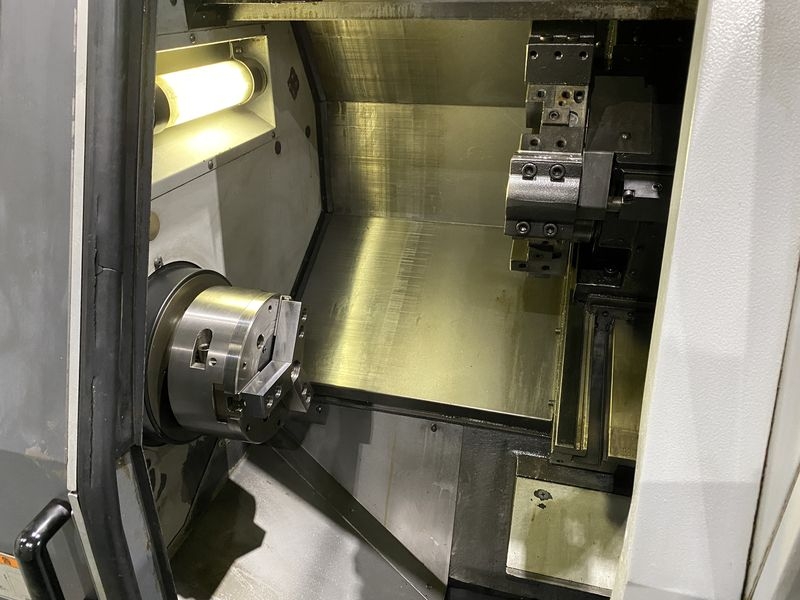

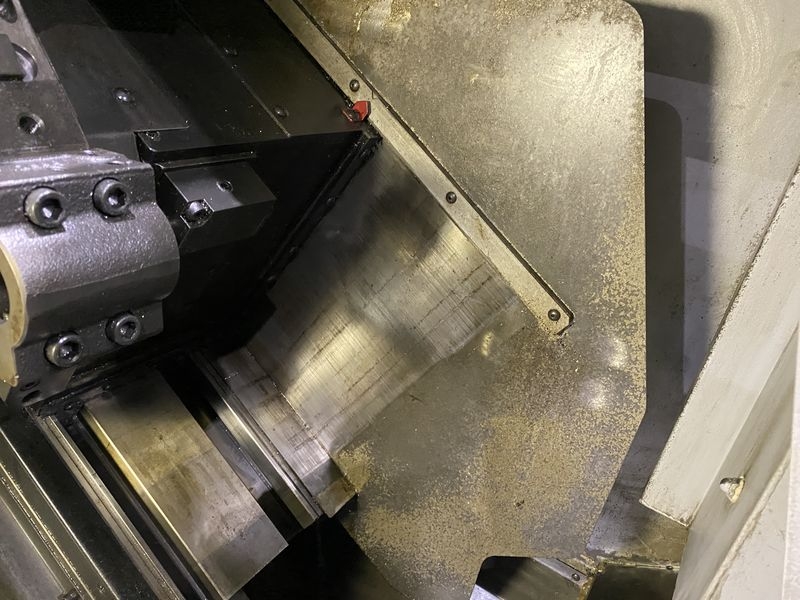

Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
