DETAIL
- Item No
0000000987

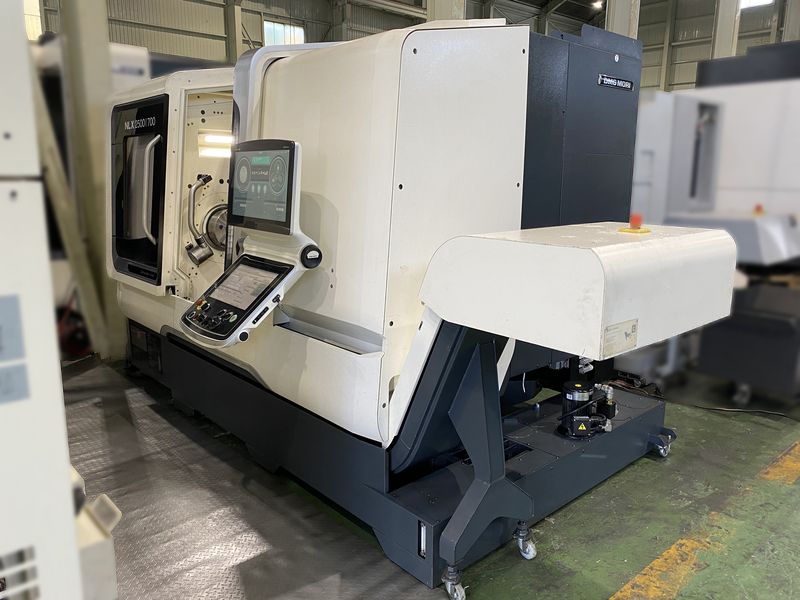

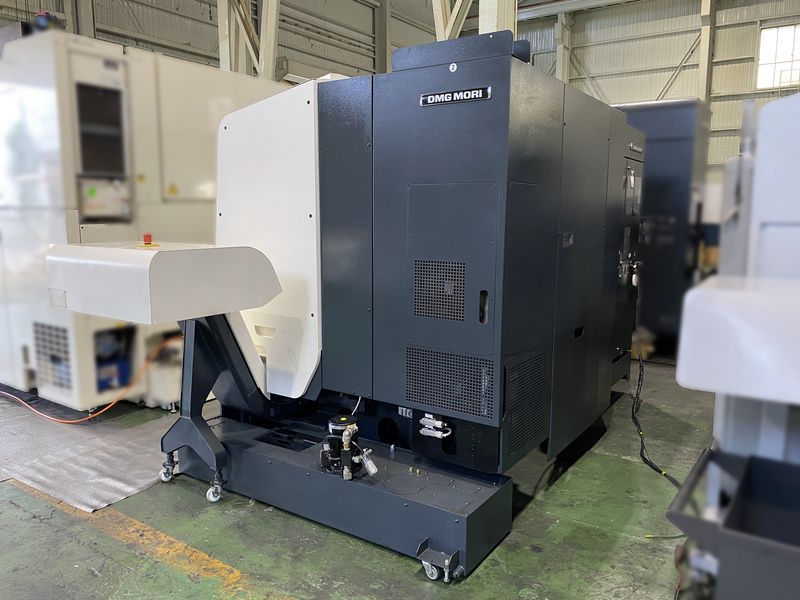

- Type
- CNC Lathe
- Maker
- DMG MORI SEIKI
- Model

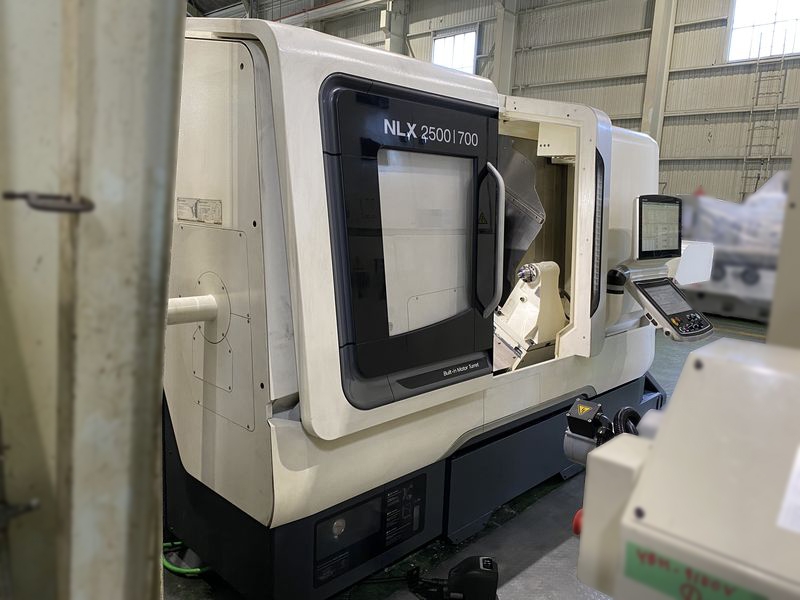

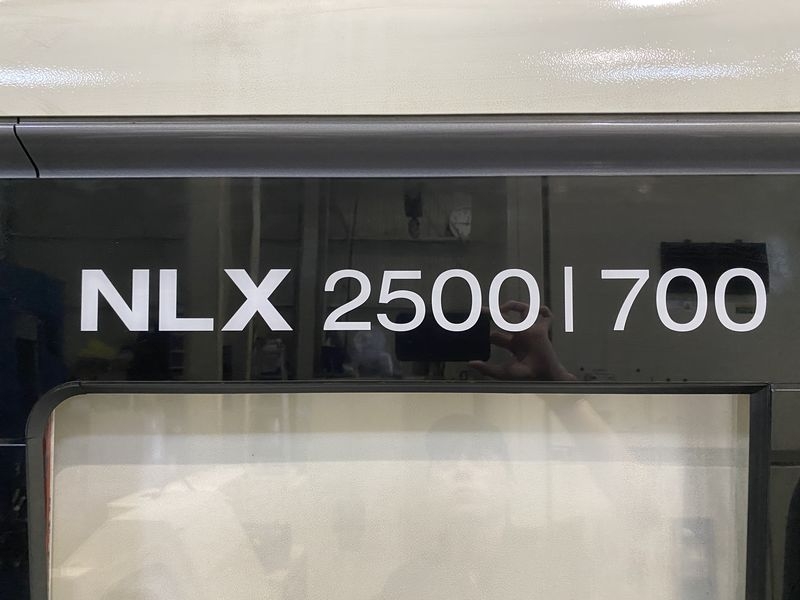

- NLX2500/700
- MFG Year
- 2019
- Movie
- Specification
- Comment

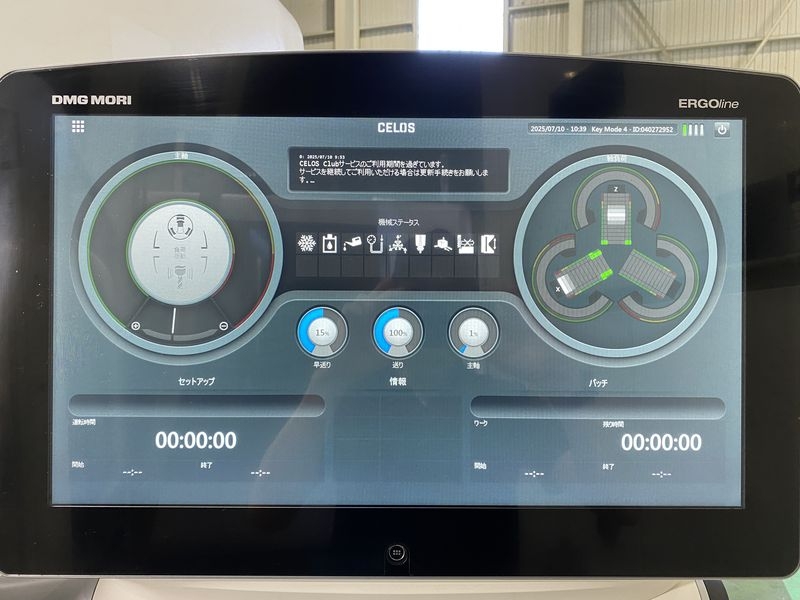

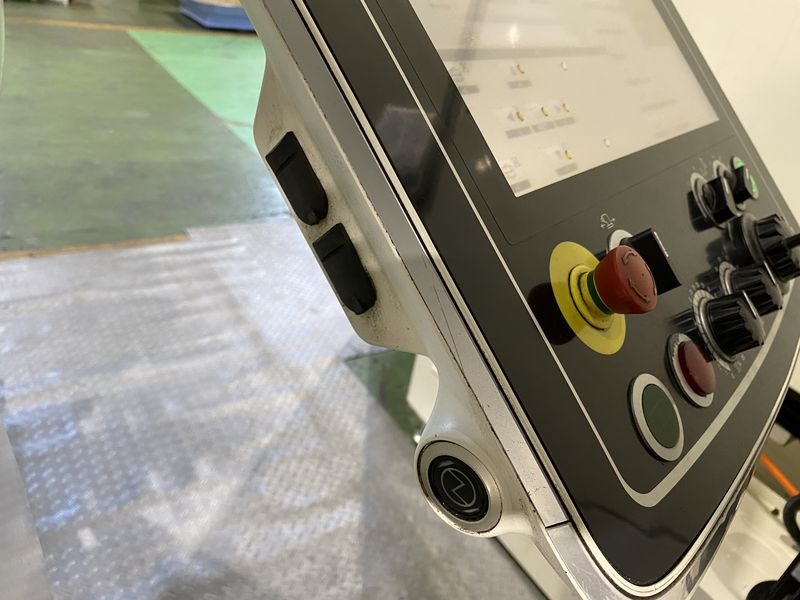

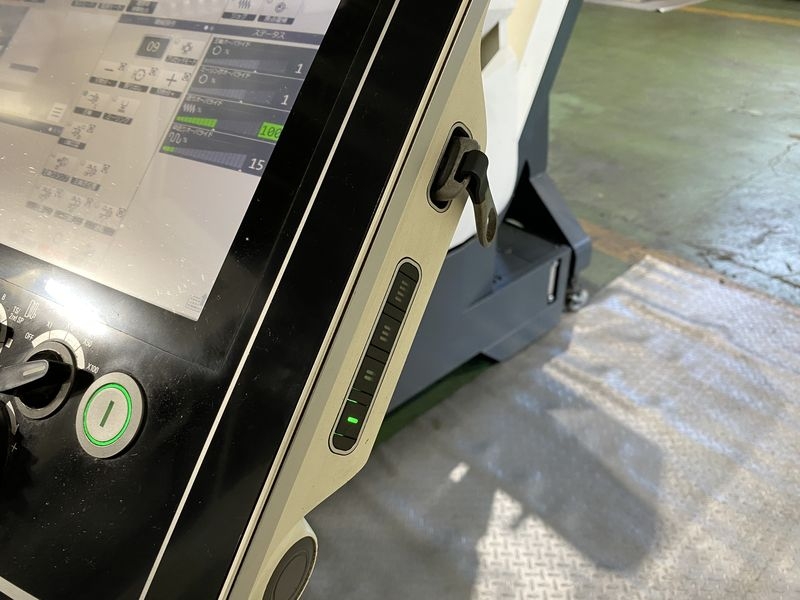

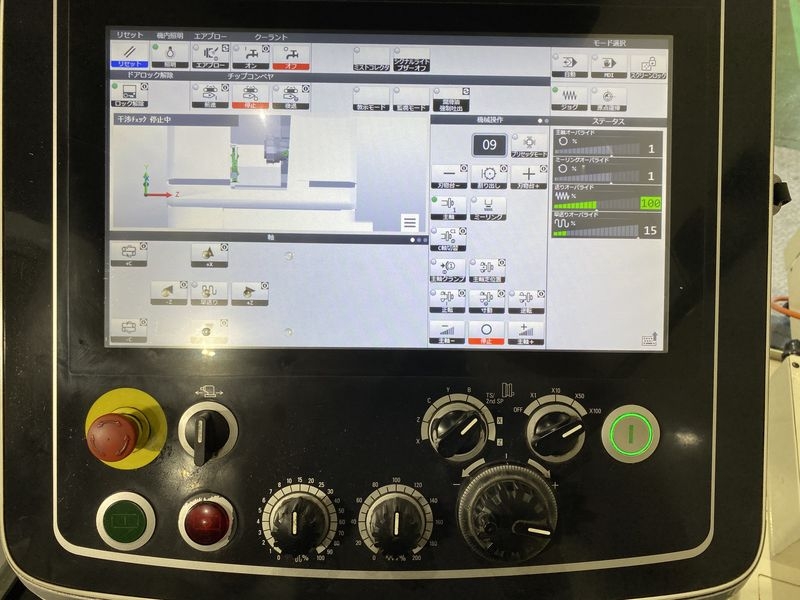

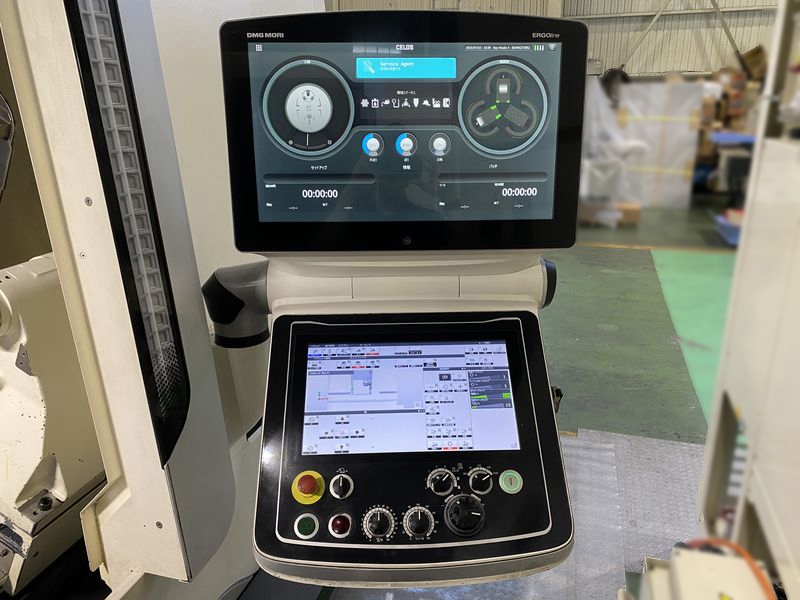

- Controller : ERGO line
Swing over bed : 920 mm
Swing over cross slide : 740 mm
Max. turning diameter : 366 mm
Max. turning length : 705 mm
Travel X : 260 Y : ± 50 Z : 795 mm
Spindle speed : 4,000 rpm
Spindle speed range : 2
Min. indexing : C: 0.001°
Through-spindle hole diameter : φ91 mm
Spindle taper : JIS A2-8

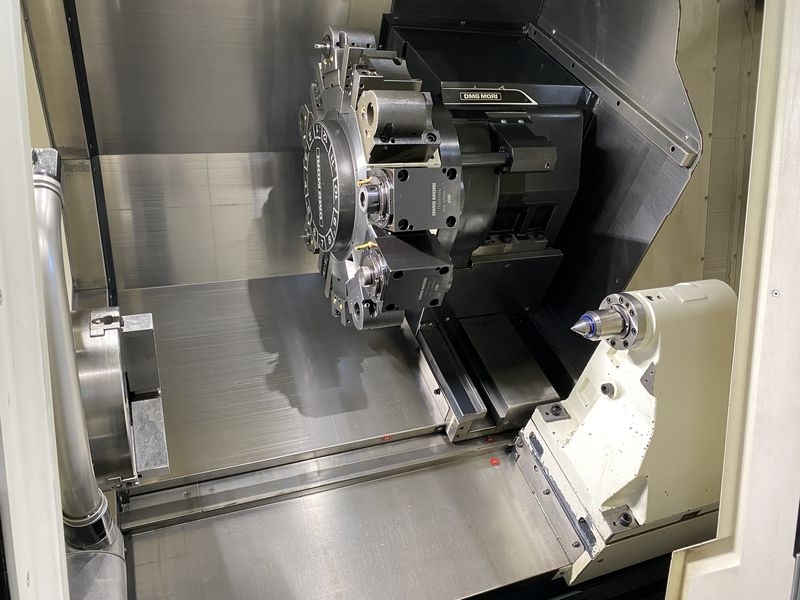

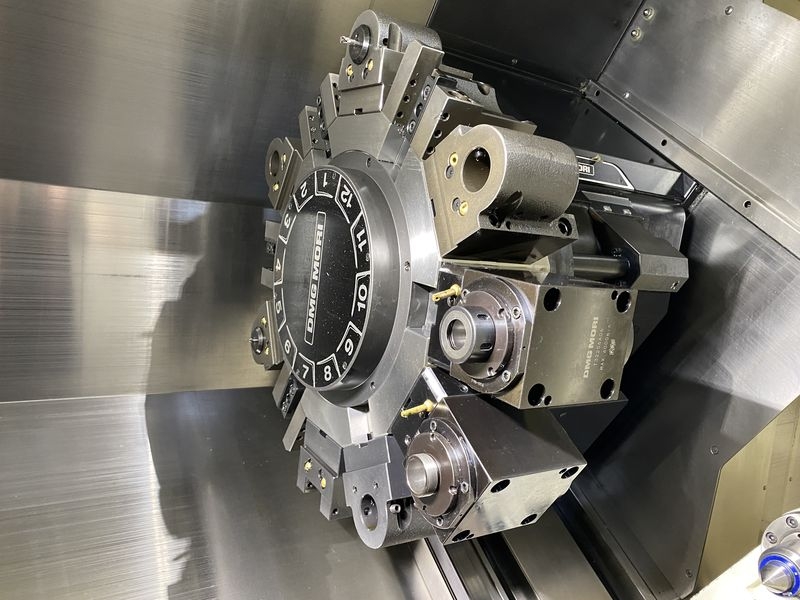

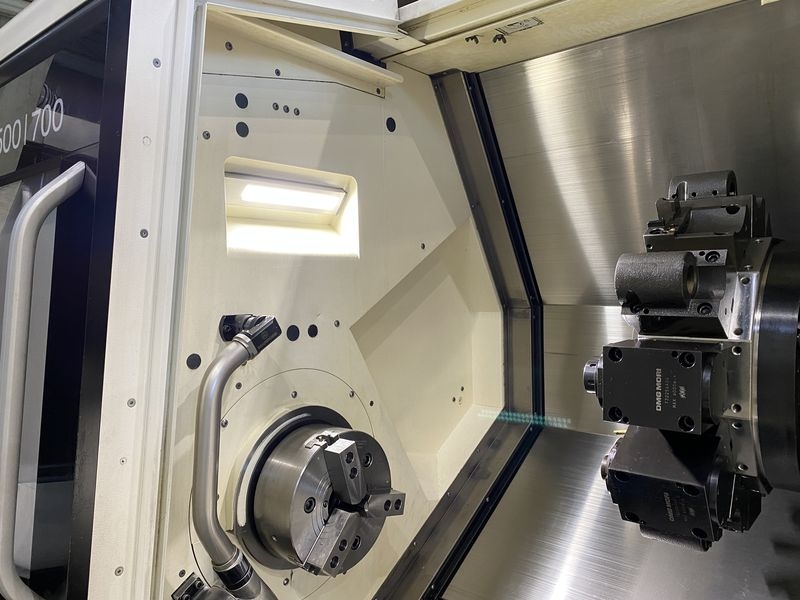

Turret : 12 stations
Milling spindle speed : 10,000 rpm

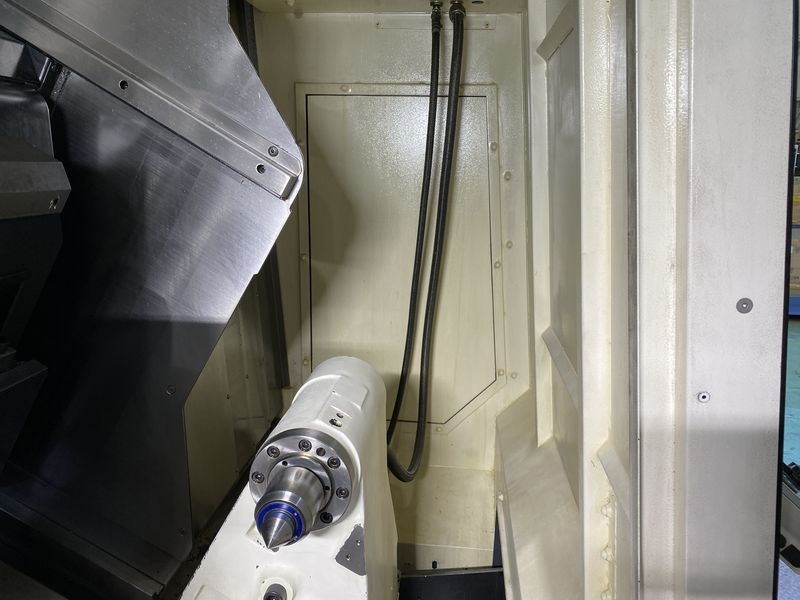

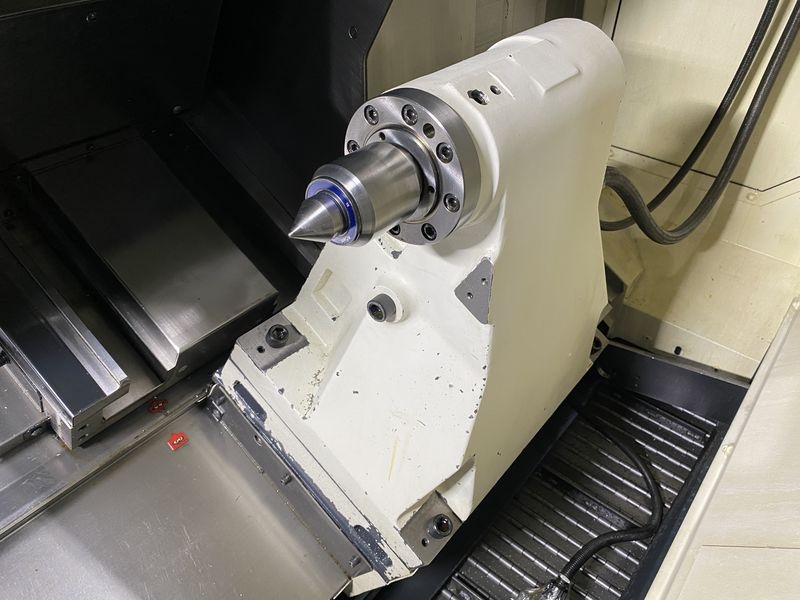

Tailstock travel : 734 mm
Tailstock taper : MT5
Required floor space : 3,981 ｘ 2,025 mm Height : 2,200 mm
(Including conveyor, excluding operation panel)
Machine weight : 5,820 kg

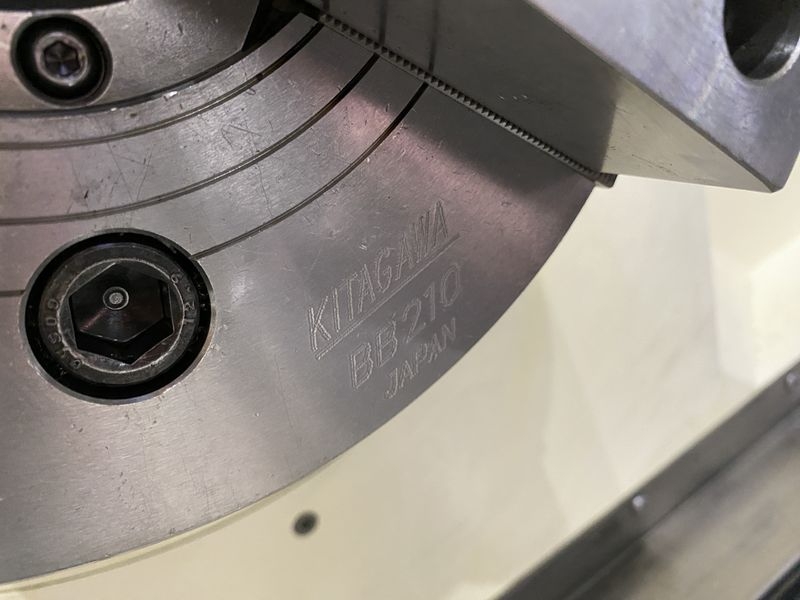

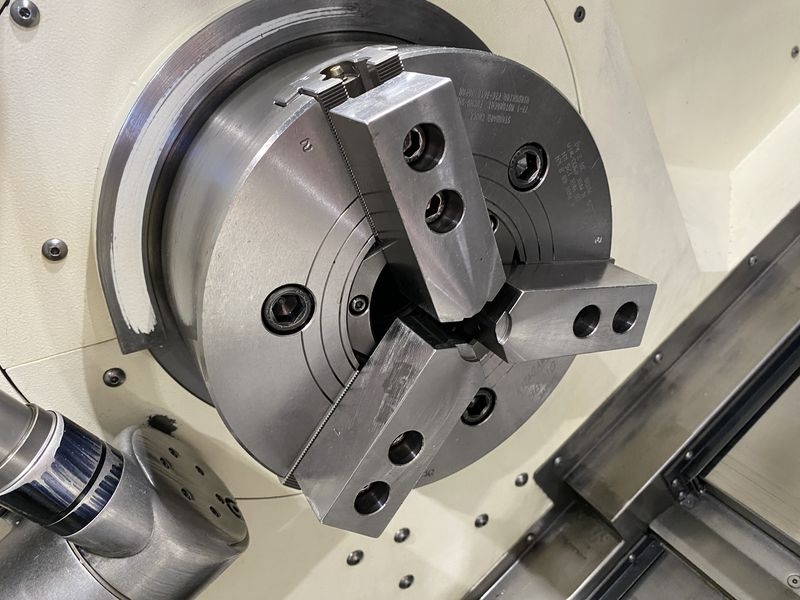

10 inch hollow chuck (BB210)

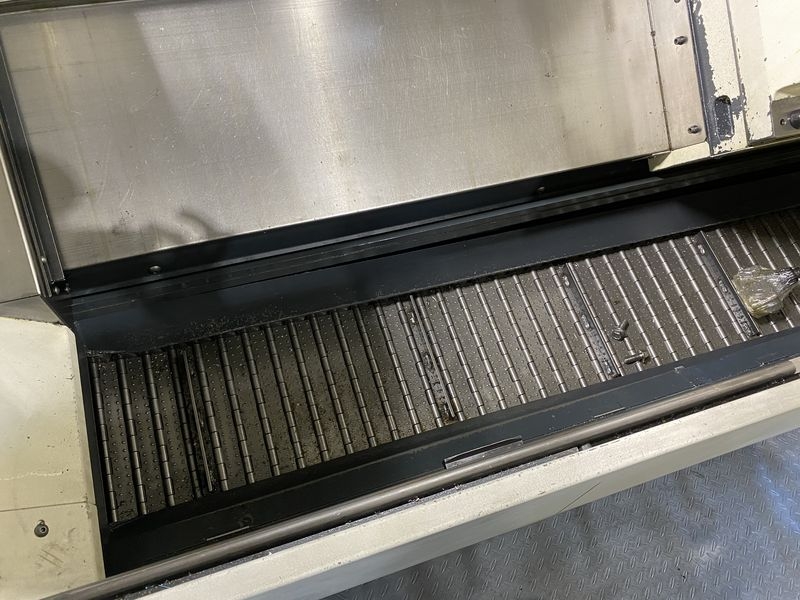

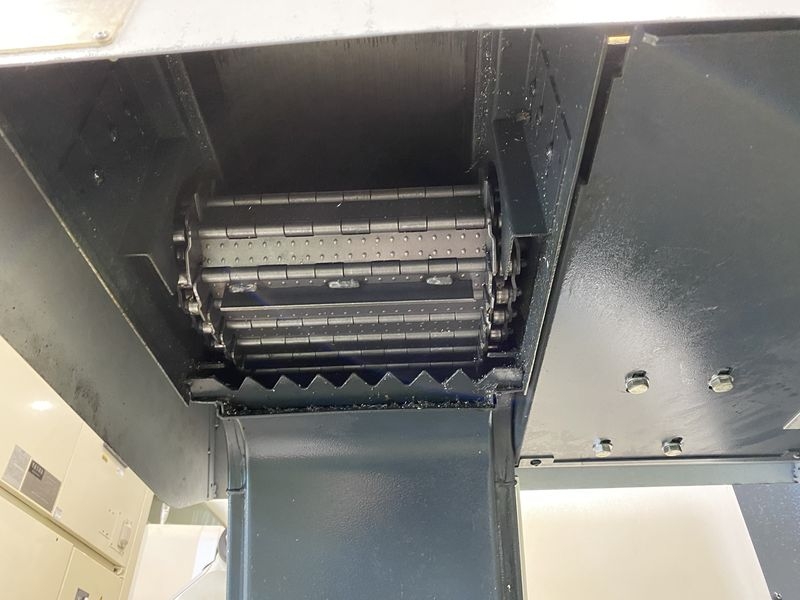

Chip conveyor

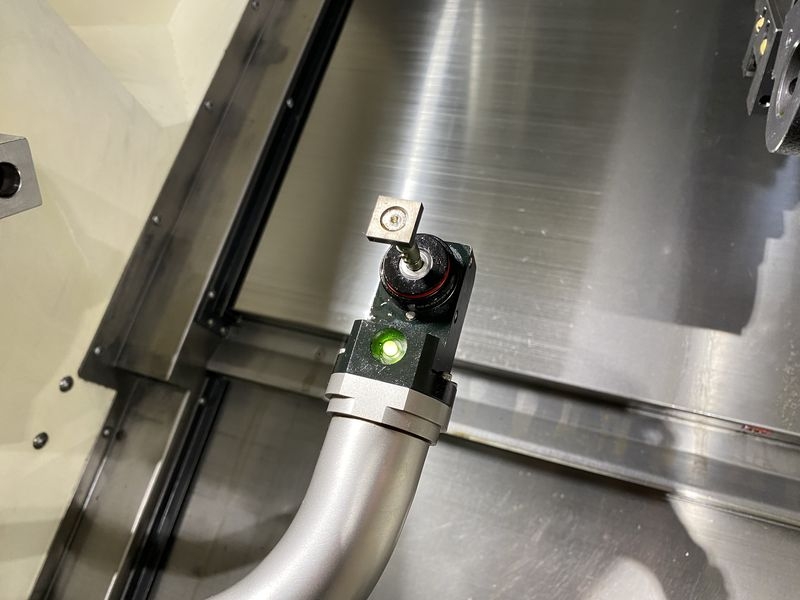

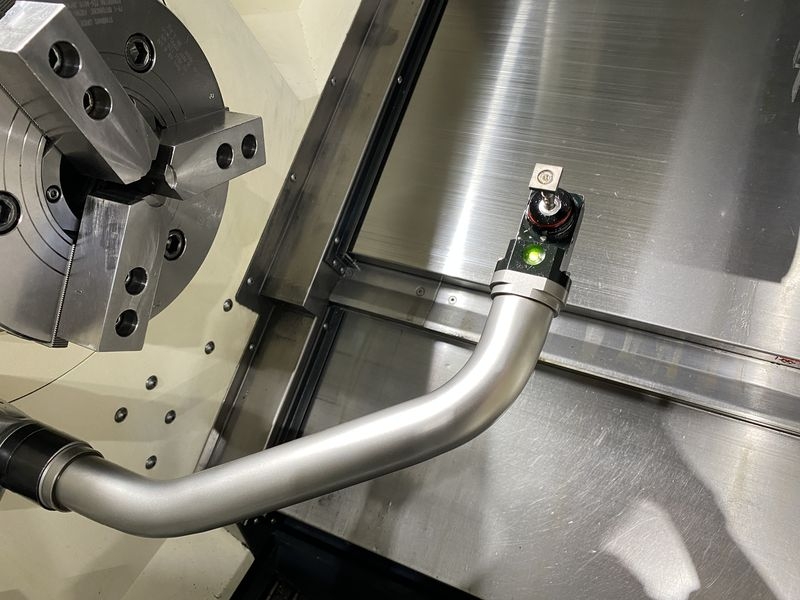

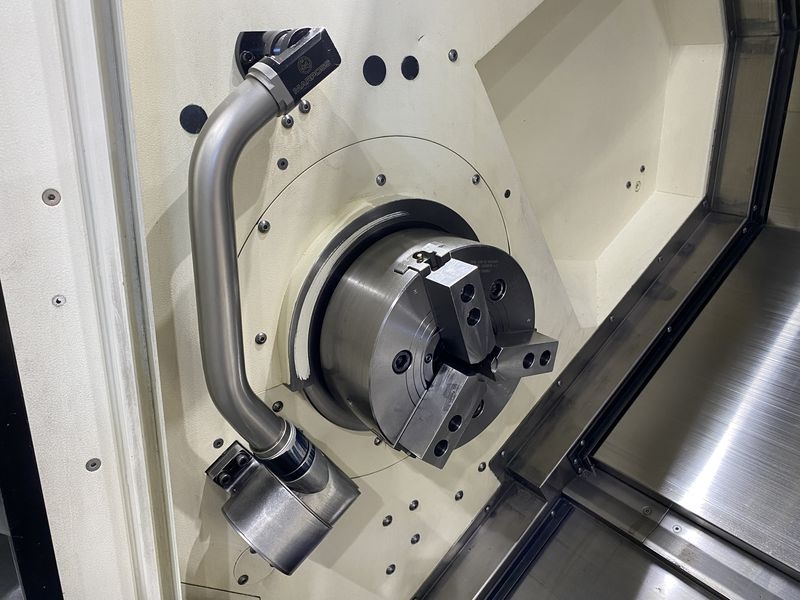

Tool eye

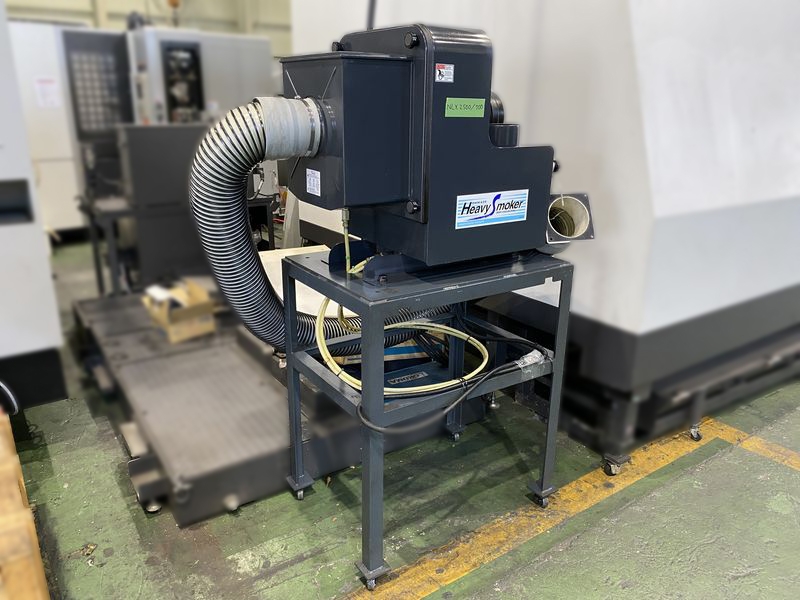

Mist collector
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
