DETAIL
- Item No
0000000982
- Comment

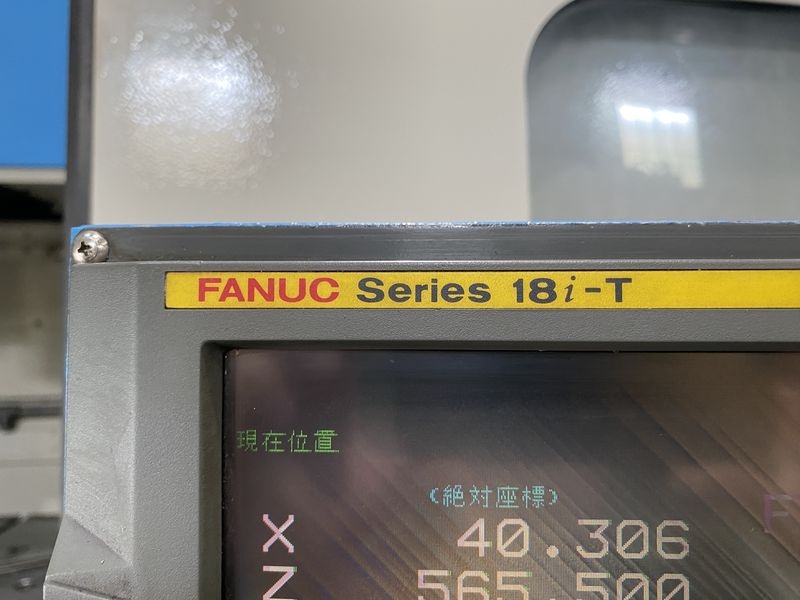

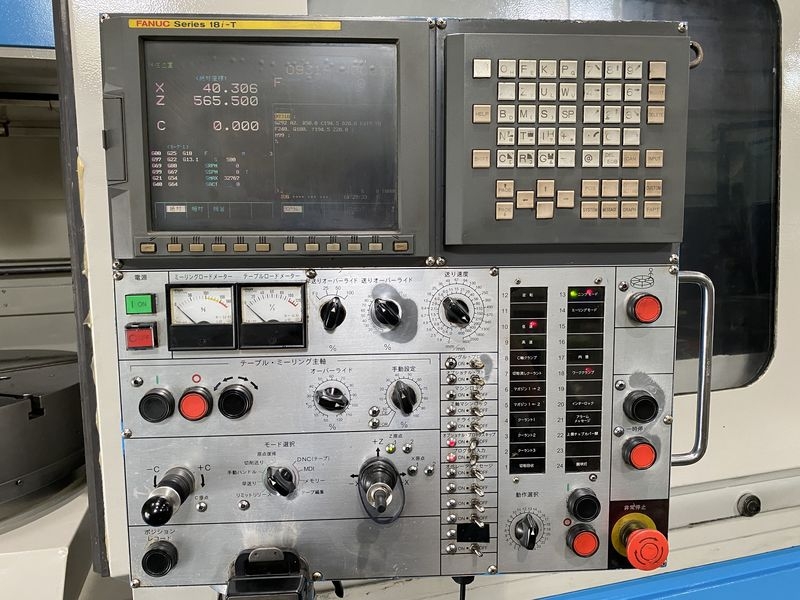

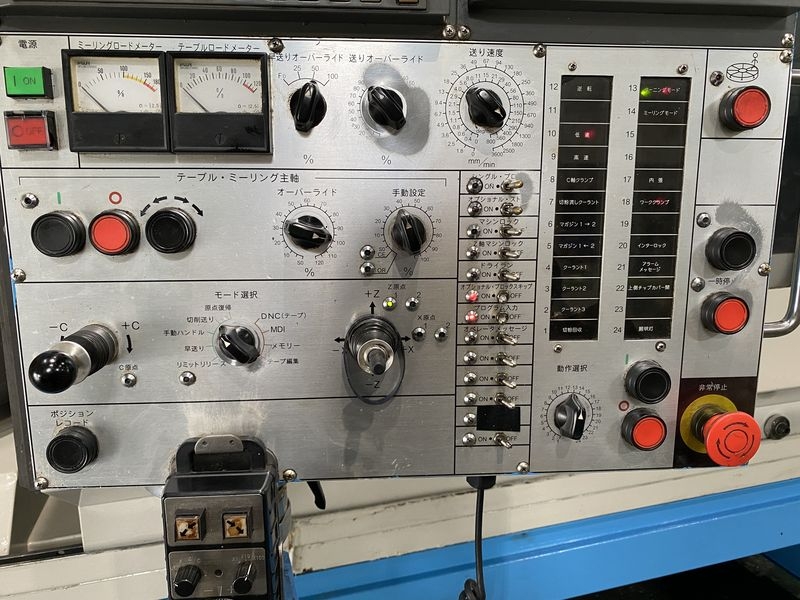

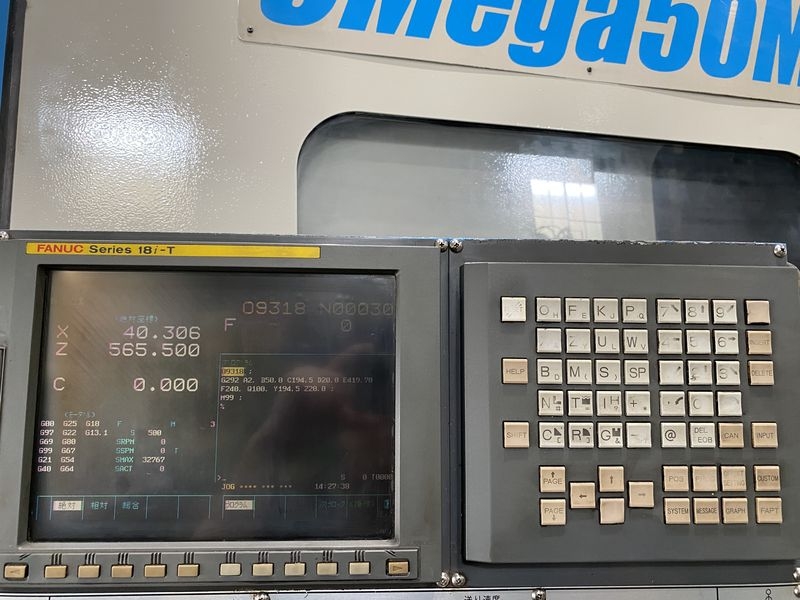

- Controller : FANUC-18iT

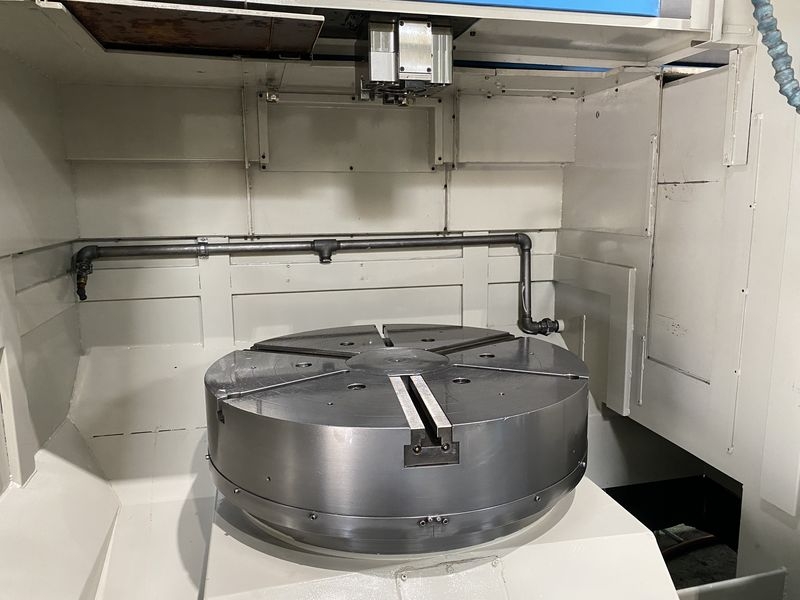

Table diameter : φ915 mm
Max. turning dia./turning height.: φ1,000 mm/535mm
Max. swing : φ1,250 mm
Max. work weight : 1,500 kg
Distance from rotating holder surface to table nose : 667 mm
Distance from turning holder surface to table nose : 665 mm
Max. drill dia. (tool carbide, work material S45C) : 75 mm
Cross rail (fixed) * Low position
Travel From center of table to right : 1,015mm
From center of table to left (X axis) : 50 mm
Turret Up and down (Z axis) : 800 mm
Milling spindle end taper : BBT50 (BIG (Plus compatible)
Table rotation speed (Low speed range) : 4.0～200 min-1
Spindle speed Low : 4.0～200 min-1
High : 16.0～550 min-1
Inching : 4 min-1
Milling spindle rotation speed : 15～1,500 min-1

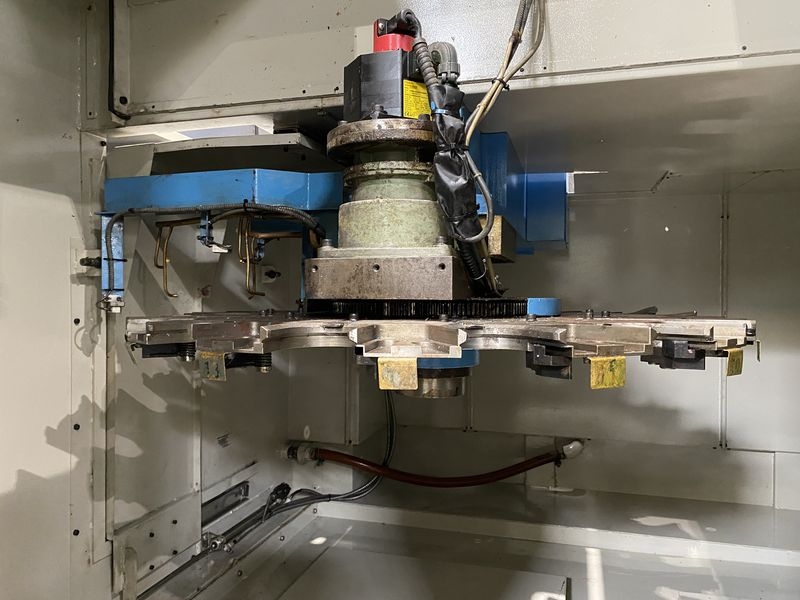

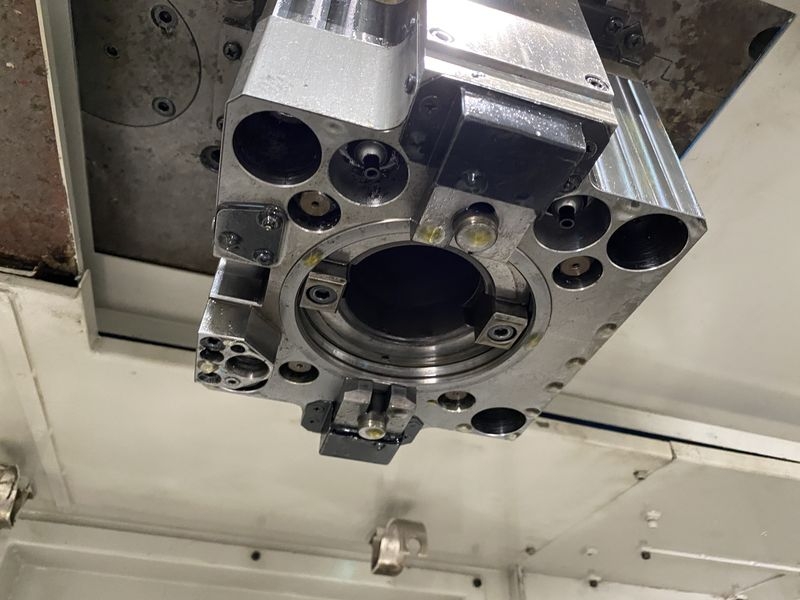

ATC : 15 stations
(Factory setting: 6 # for turning, 8 # for rotation, 1 dummy plate)
Max. tool storage length (from mounting surface) : 450 mm
Max. tool storage weight : 50 kg (turning) /25 kg (rotating tools)
Required floor space : 3,300×3,275 mm
Machine height : 4,285 mm
Machine weight : 12,000 kg

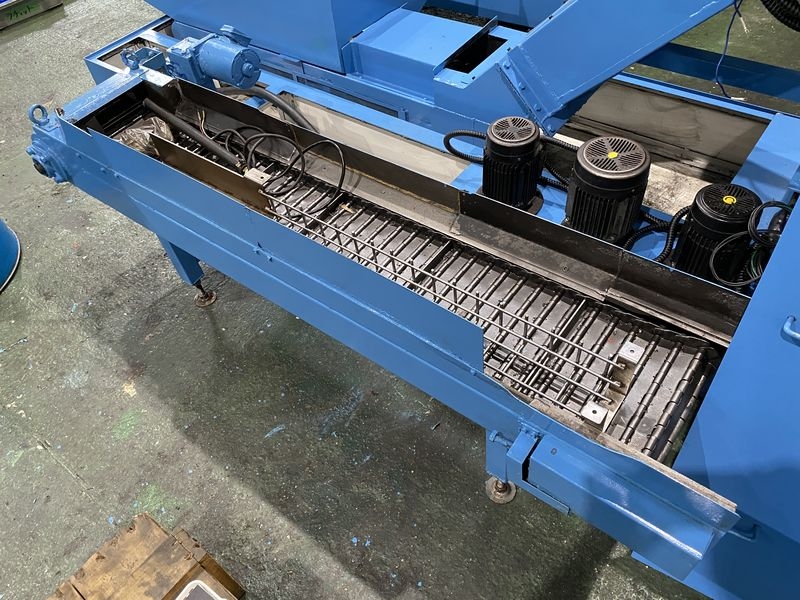

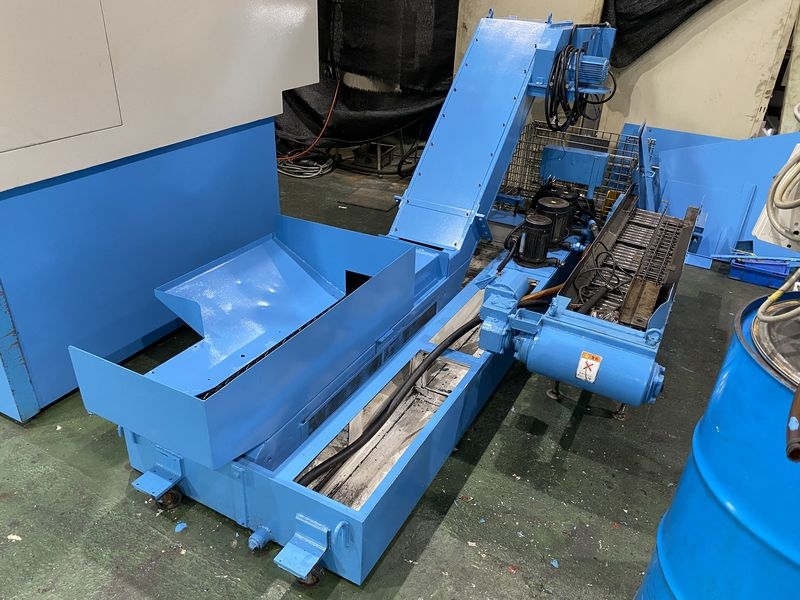

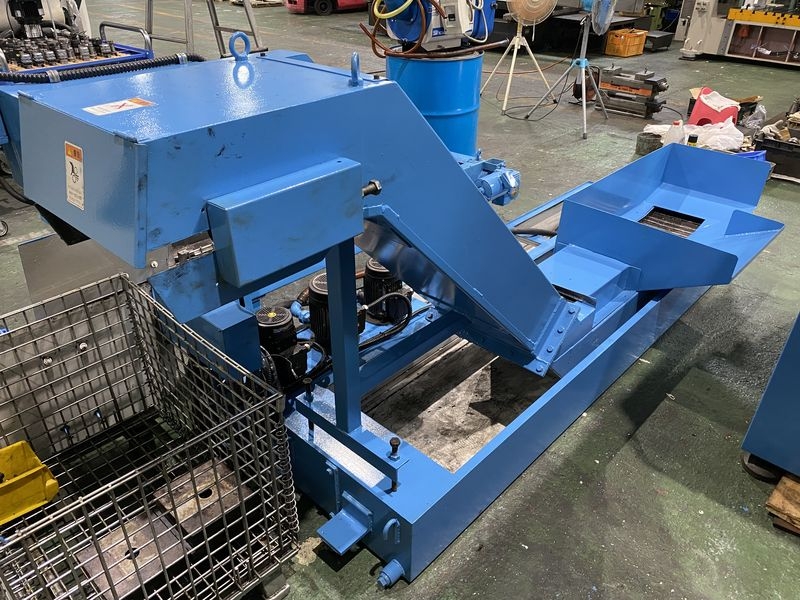

Chip conveyor (rear discharge)

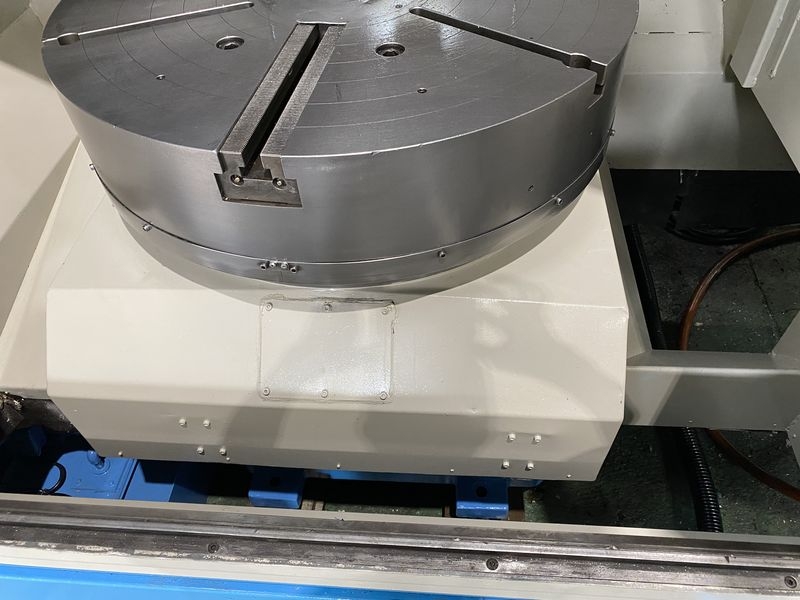

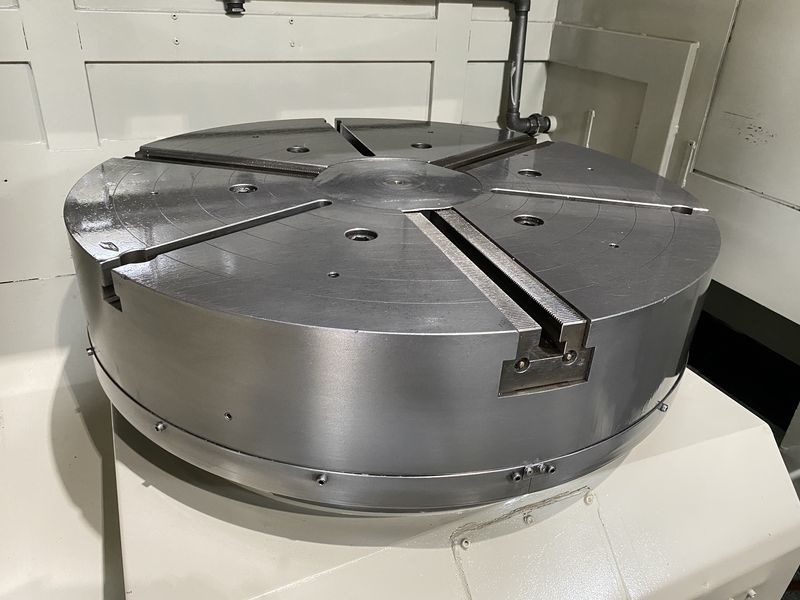

φ915mm hydraulic 3-jaw table
Tape memory length 160m
Interactive automatic programming function for lathes (CAPII)
Polar coordinate interpolation
Cylindrical interpolation
Helical interpolation
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
