DETAIL
- Item No
0000001029
- Comment

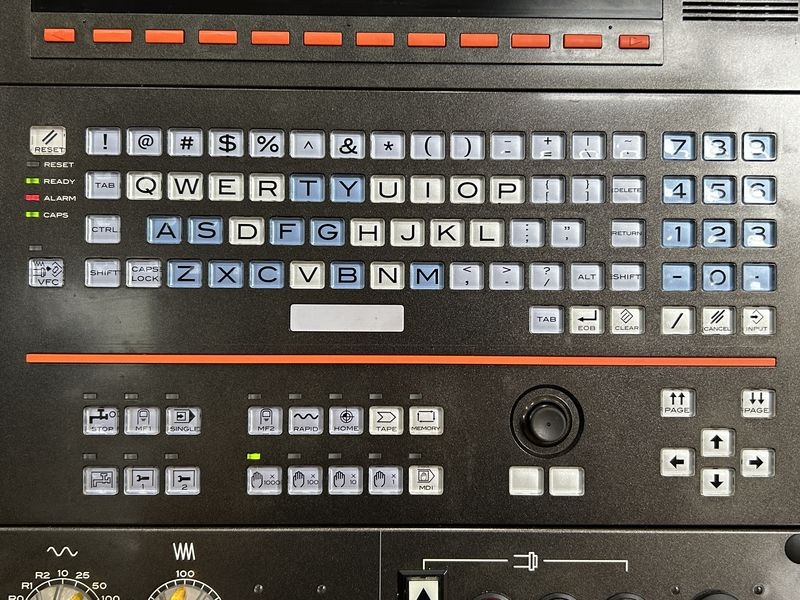

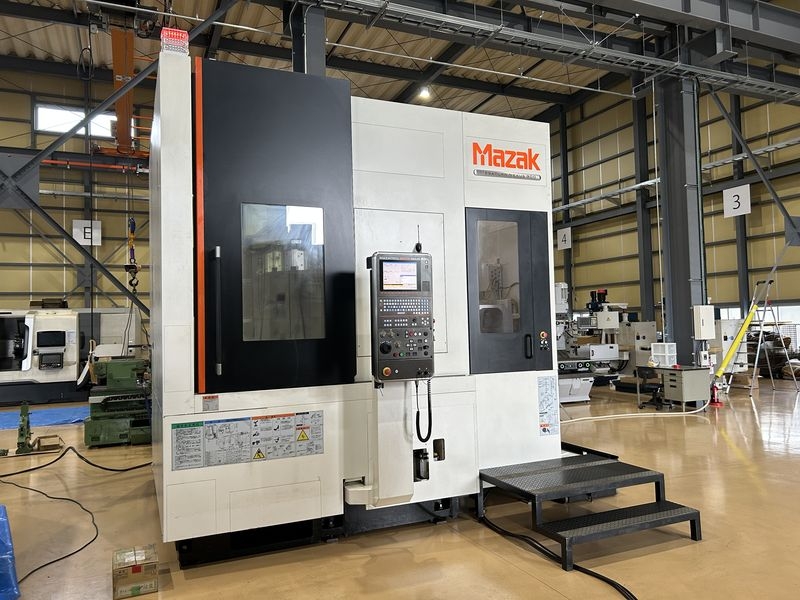

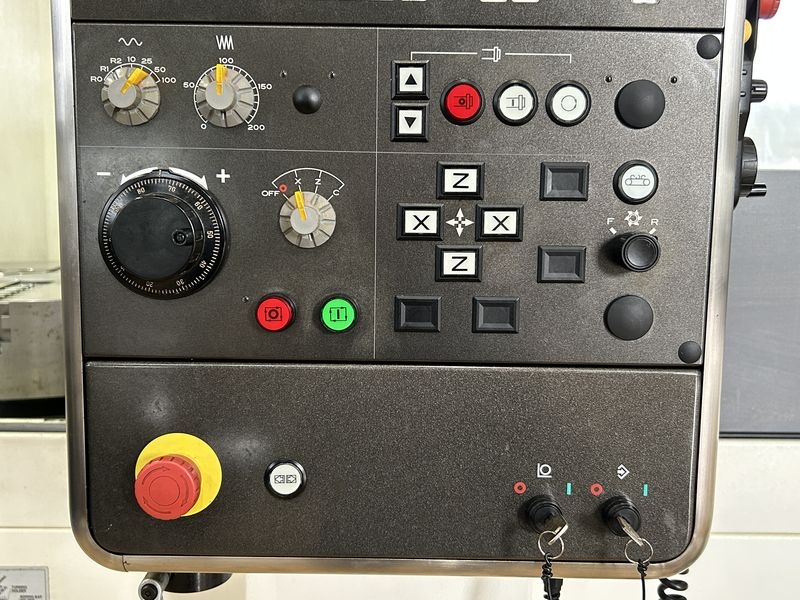

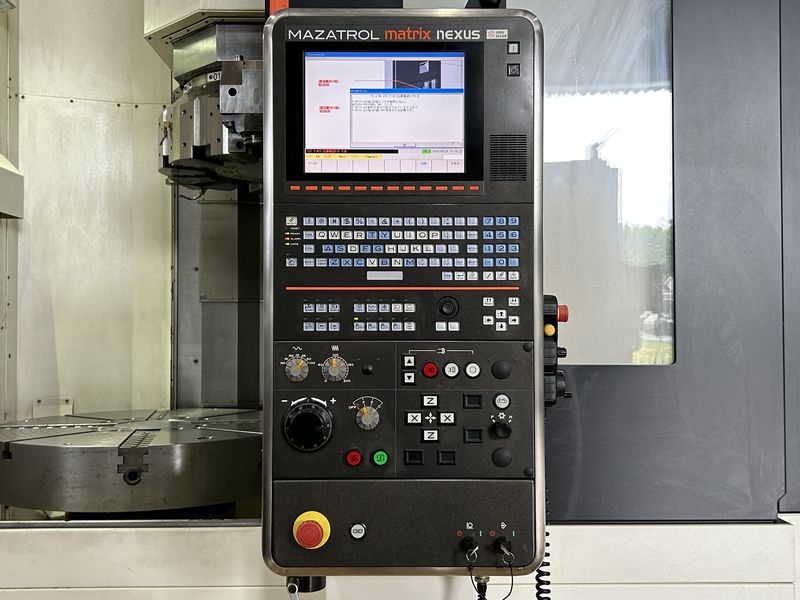

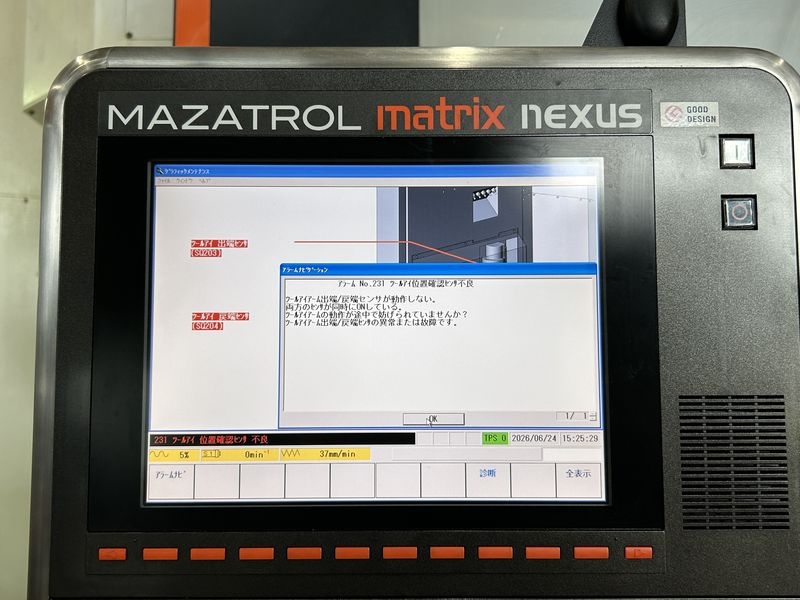

- Control unit: MAZATROL MATRIX NEXUS
Maximum swing: φ940 mm
Maximum work diameter : φ920 mm
Maximum work height: 800 mm
Distance between spindle nose and turret face: 154～1030 mm
Maximum load capacity: 3000 kg
Travel （X, Z）: 470 ｘ 876 mm
Maximum spindle speed: 1,250 rpm

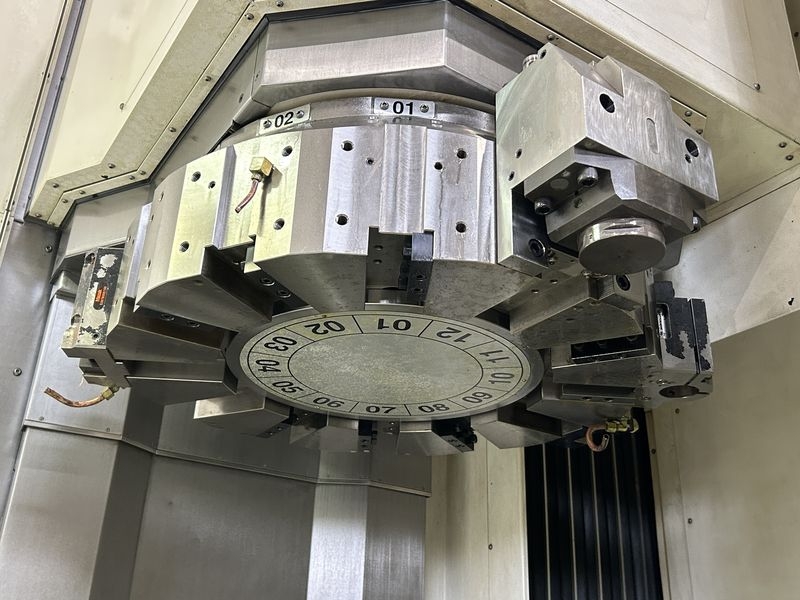

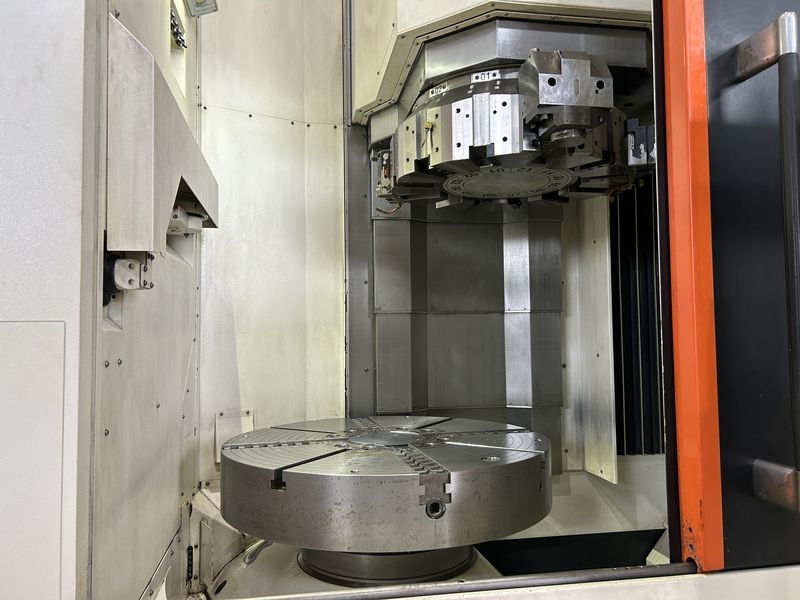

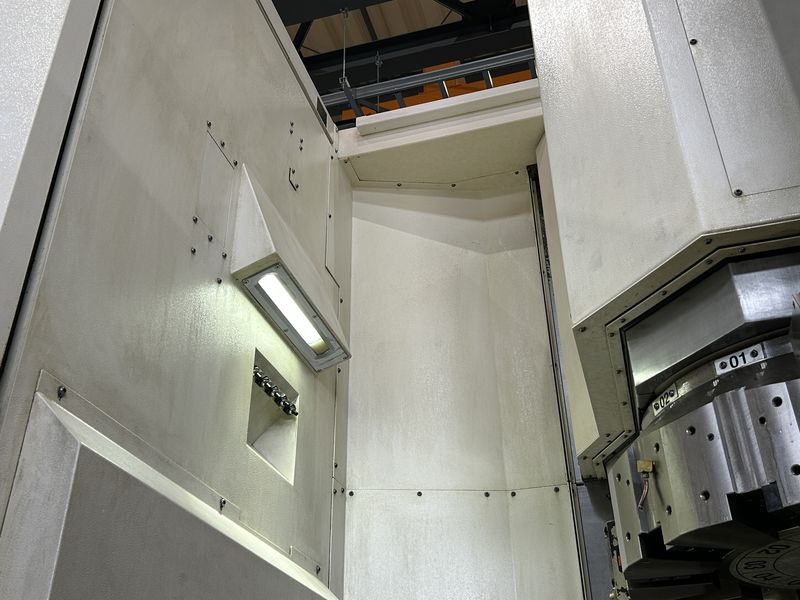

Turret type: 12‑station drum turret
Required floor space: 2,315 × 1,988.5 mm
Machine height: 3,400 mm
Machine weight: 14,000 kg

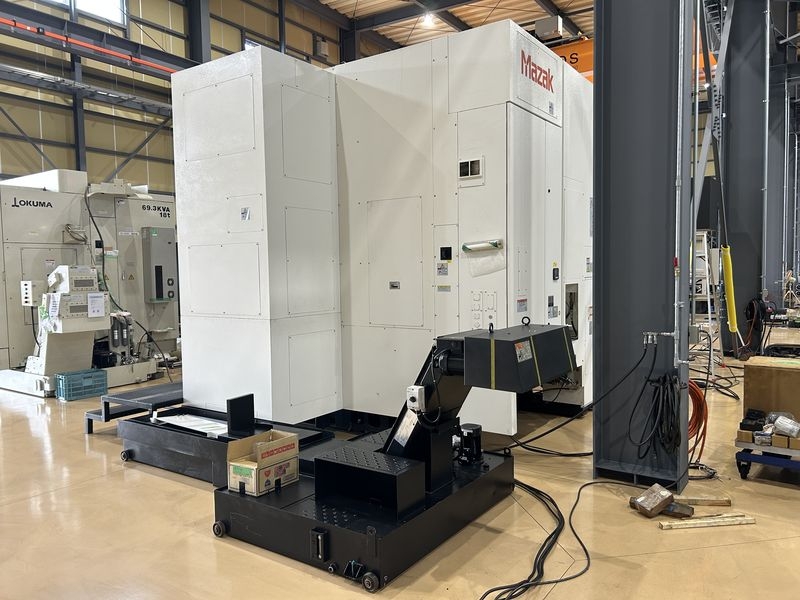

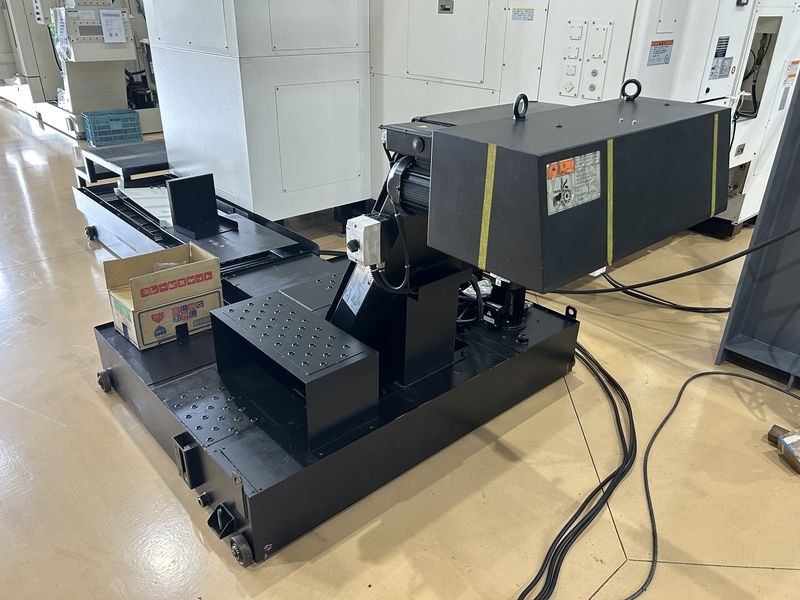

Rear‑discharge chip conveyor

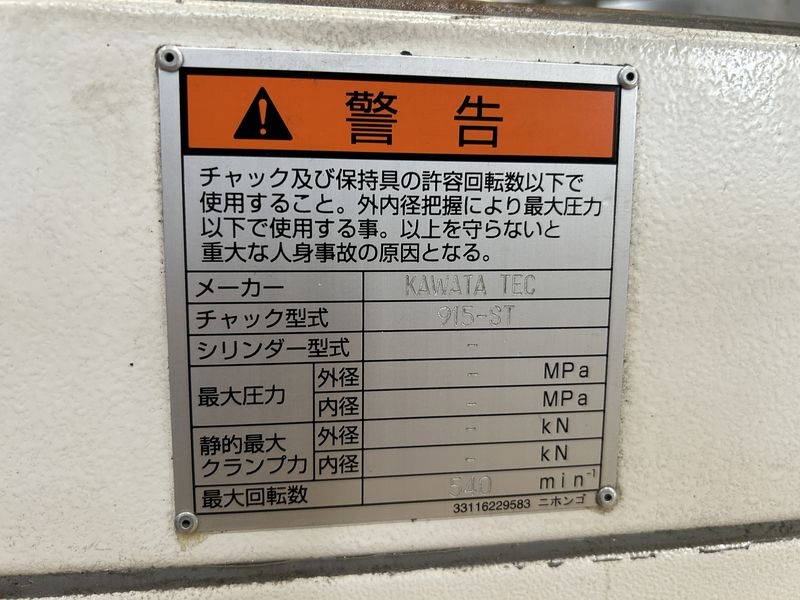

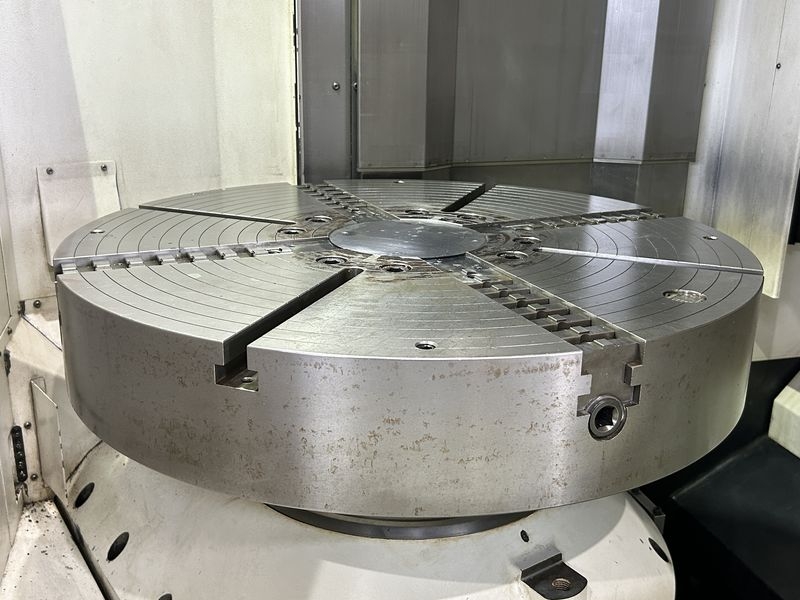

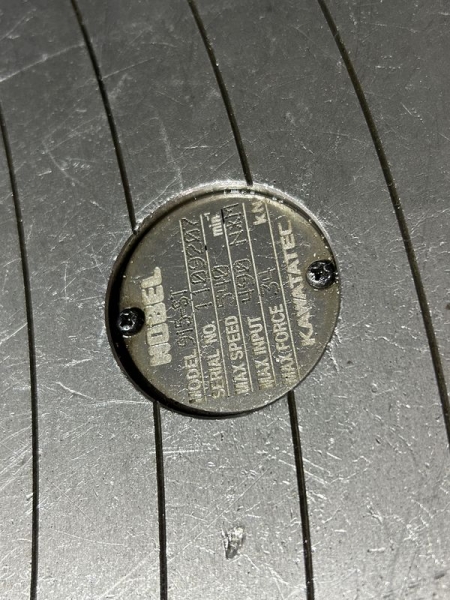

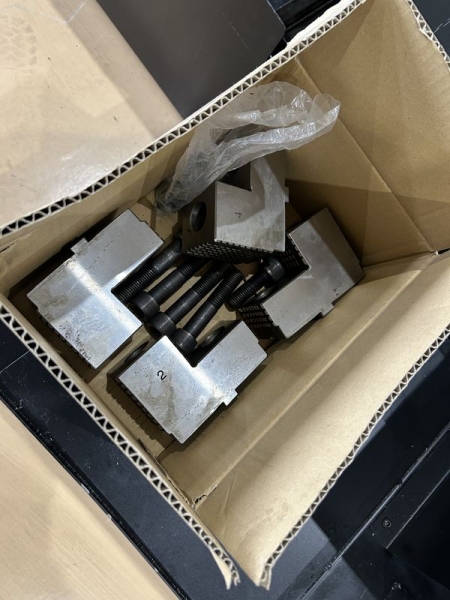

18‑inch 4‑jaw independent chuck (915‑ST, Kawata Tech)
Coolant tank: 460 L

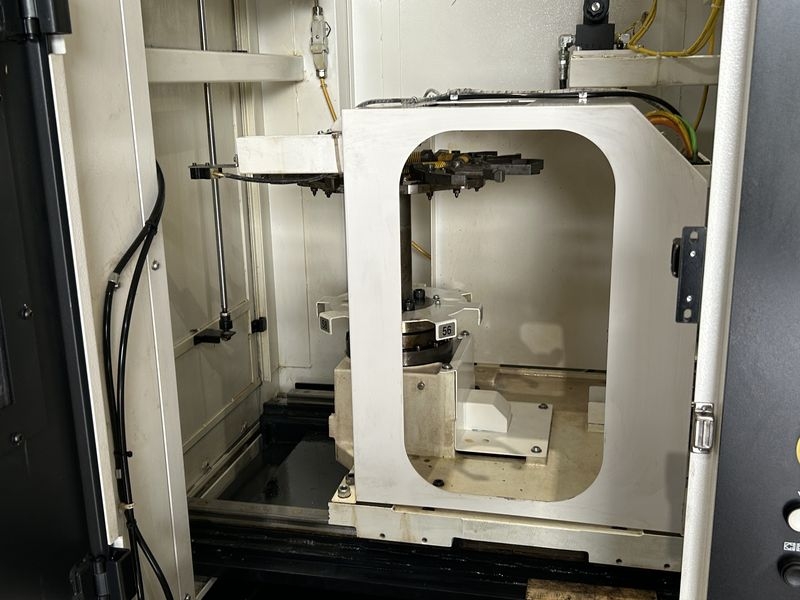

ATC with 12 tools (CAPTO C6)
Relocation detection device
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
