DETAIL
- Item No
0000001018
- Type
- NC Surface Grinding Machine
- Maker
- OKAMOTO
- Model
- PSG-155DX
- MFG Year
- (OH 2025)
- Movie
- Specification
- 1 2
- Comment
- Workpiece size: 1500 × 500 × 595 mm
Table travel: 1750 × 560 mm
Table size: 1550 × 500 mm
Distance from table top to bottom of grinding wheel: 595 mm
Chuck size: 1500× 500× 100 mm
Allowable work mass (included chuck mass): 2500 kg (555 kg)
Automatic downfeed amount (rough grinding): 0.001–0.05 mm
(15 steps for rough grinding, 10 steps for fine grinding)
Grinding wheel (OD×width×ID): φ510× 50×φ127 mm
Grinding wheel speed: 1,100 rpm
Required floor space: 5,500 × 3,010 mm
Machine height: 2,200 mm
Machine weight: 8,000 kg
Vertical feed handle for the grinding wheel head
Upper dresser
Grinding wheel (with flange)
Coolant unit with magnetic separator (120 L)
Hydraulic unit (with automatic oil temperature control)
Tool set

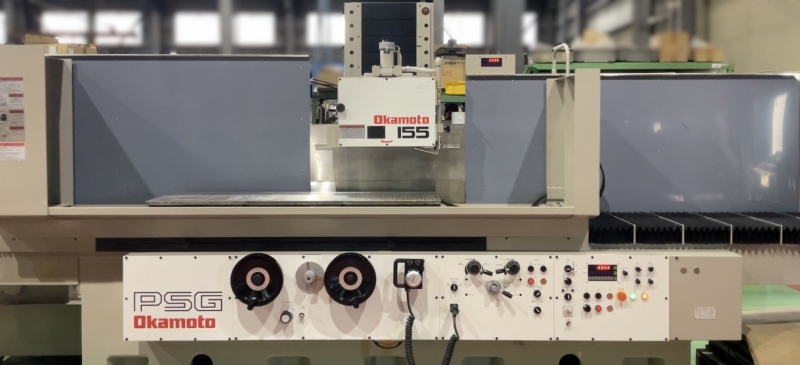

Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
