DETAIL
- Item No
0000001015
- Type

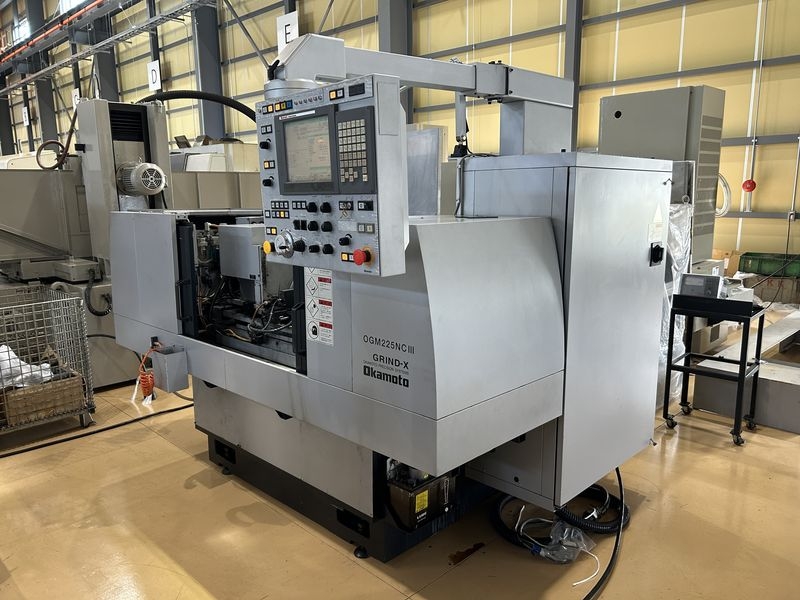

- CNC Cylindrical Grinder
- Maker

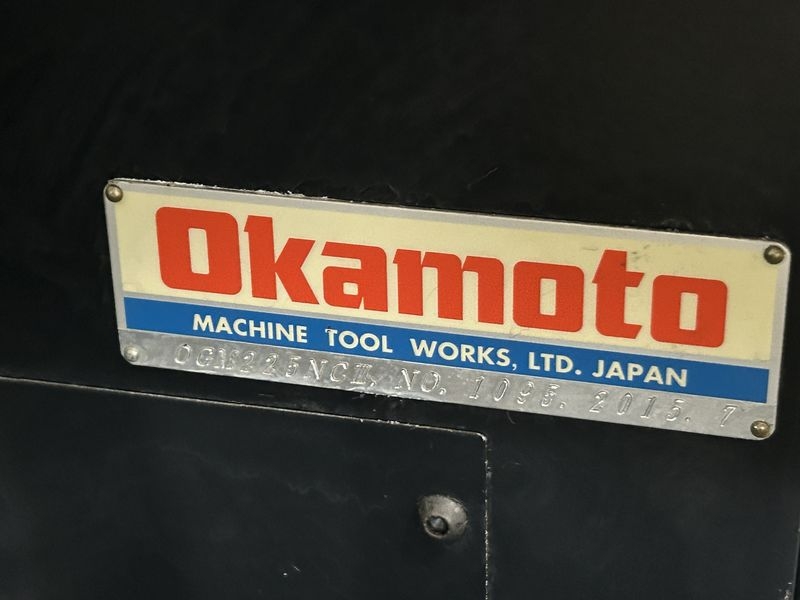

- OKAMOTO
- Model

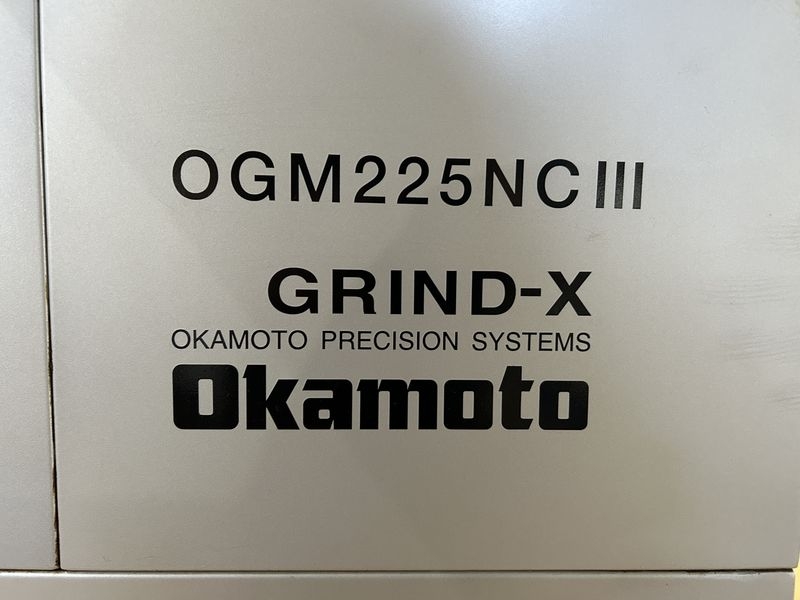

- OGM225NCⅢ (2015年)
- MFG Year
- 2015
- Movie
- Specification
- 1 2
- Comment

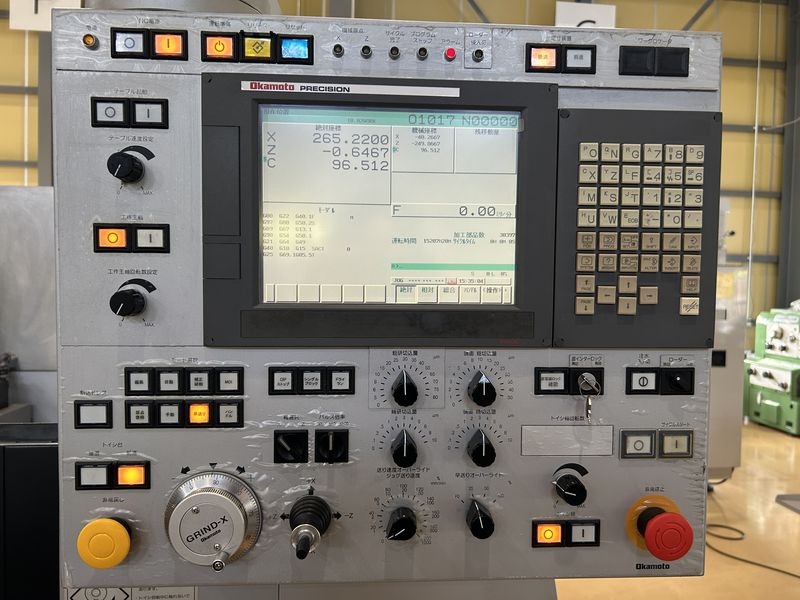

- Control unit: FANUC 0i-TD
Table swing over: 220 mm
Distance between centers: 250 mm
Max. work diameter: φ200 mm
Max. workpiece mass (between centers): 50 kg
Max. workpiece mass (chuck work): 20 kg
Grinding wheel size: φ355 × 38 × φ127 mm
Grinding wheel speed: 1,614～2,247 rpm
Wheelhead X‑axis travel: 215 mm
Table Z‑axis travel: 510 mm

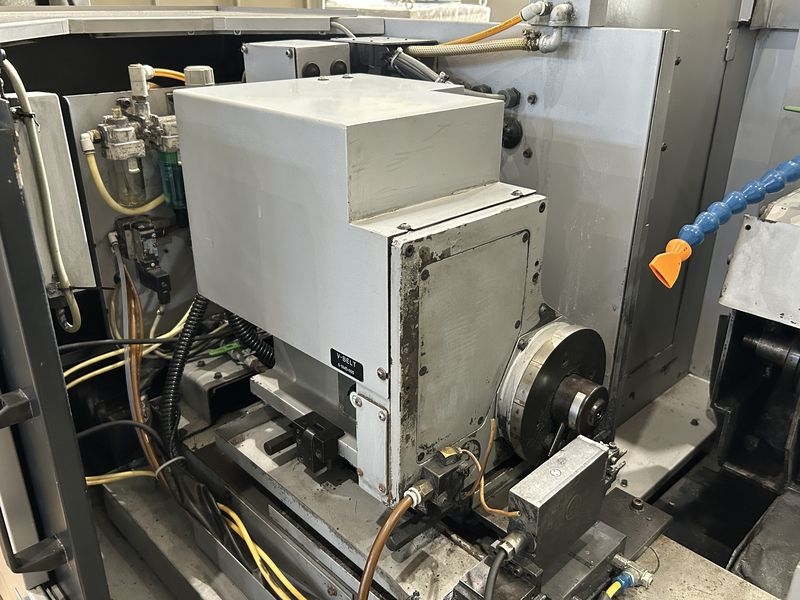

Headstock: High‑rigidity spindle
Grinding wheel rotation speed : 10～500 rpm
Headstock through‑hole diameter: φ18 mm

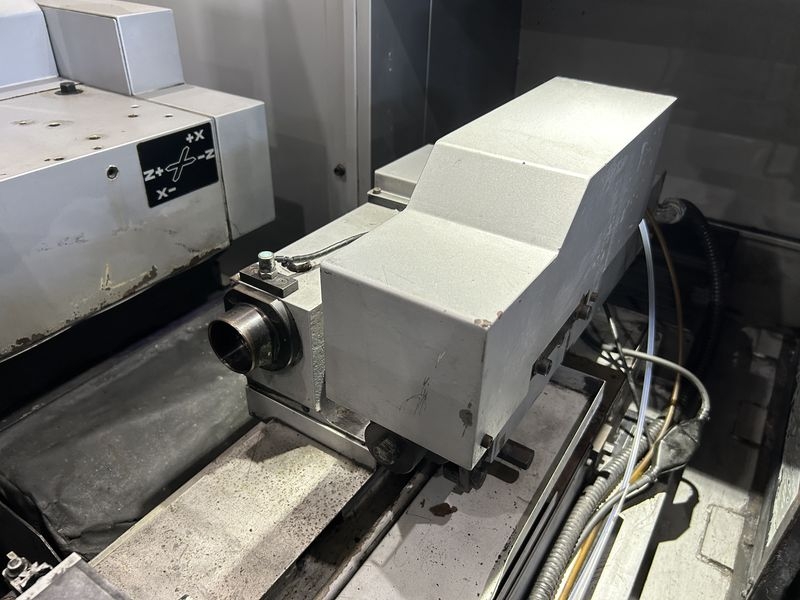

Tailstock travel: 20 mm
Center taper: No.3 MT
Floor space: W 2,670 × D 2,010 × H 1,800 mm
Machine weight: 2,900 kg
Non‑swiveling wheelhead

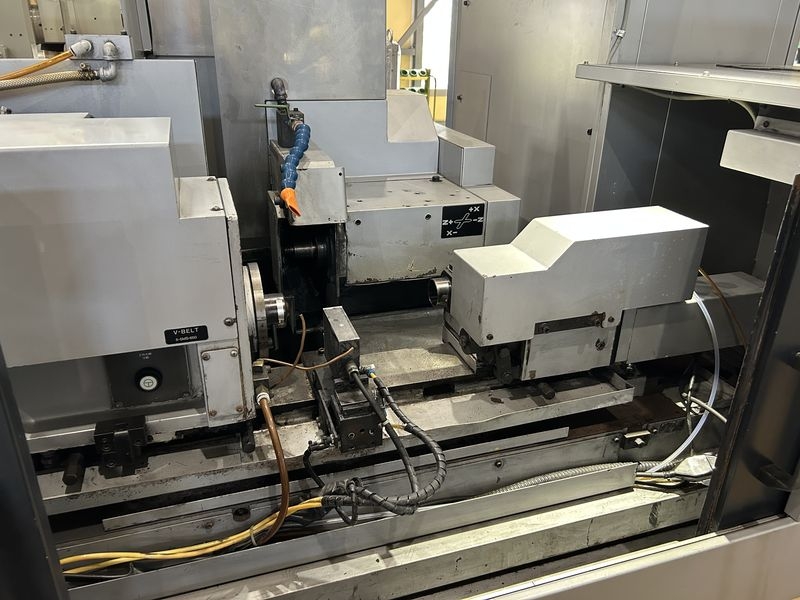

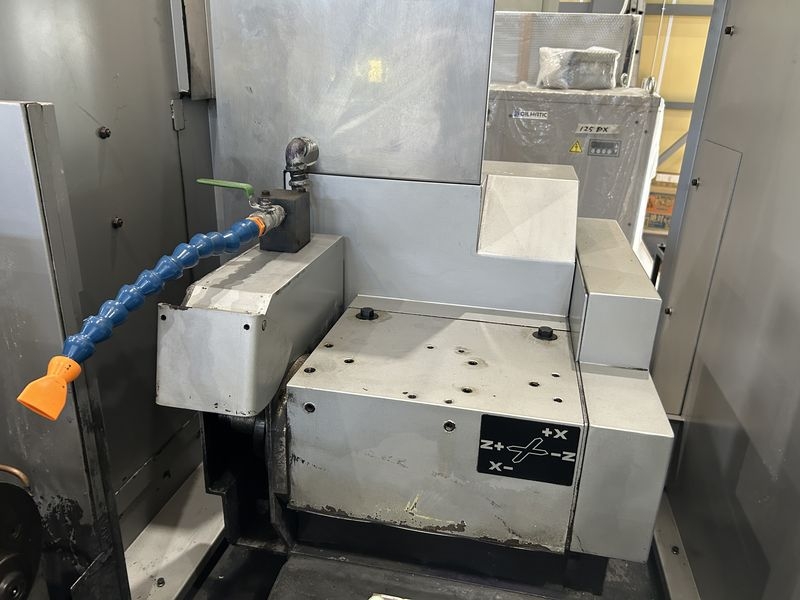

Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
