DETAIL
- Item No
0000001009
- Comment

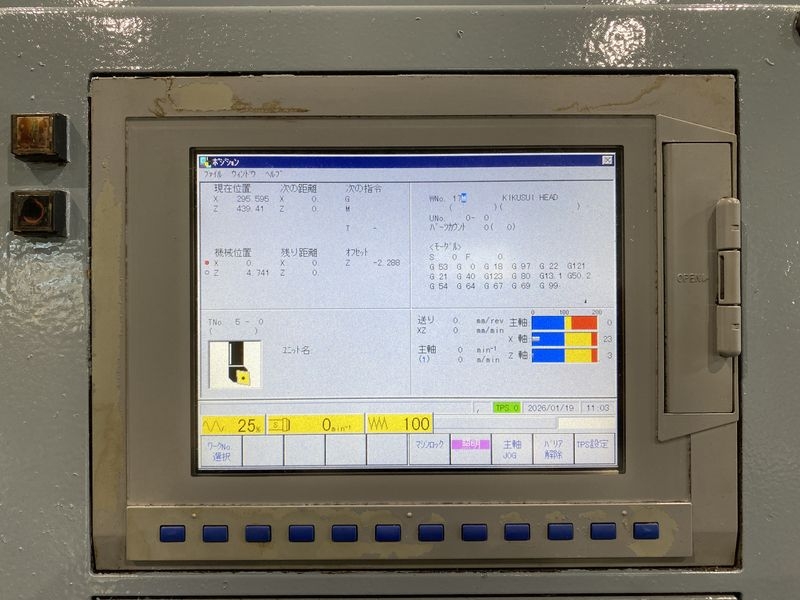

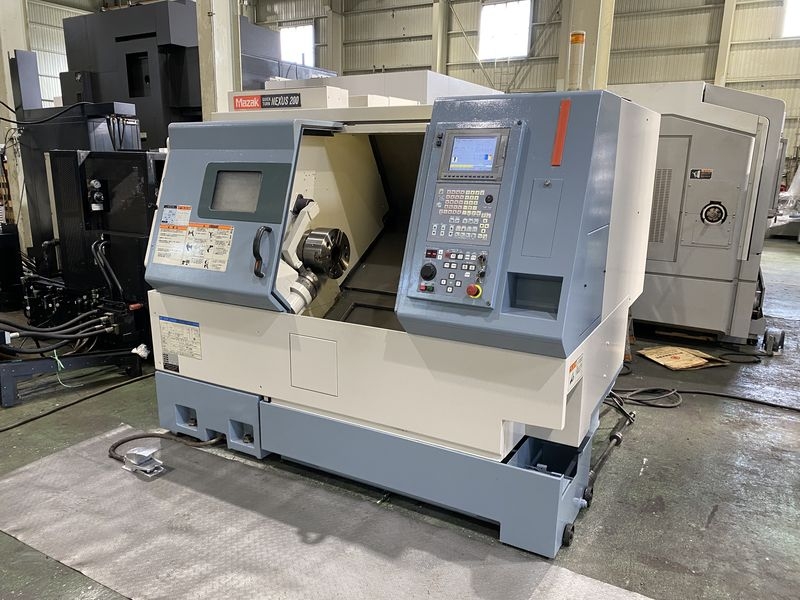

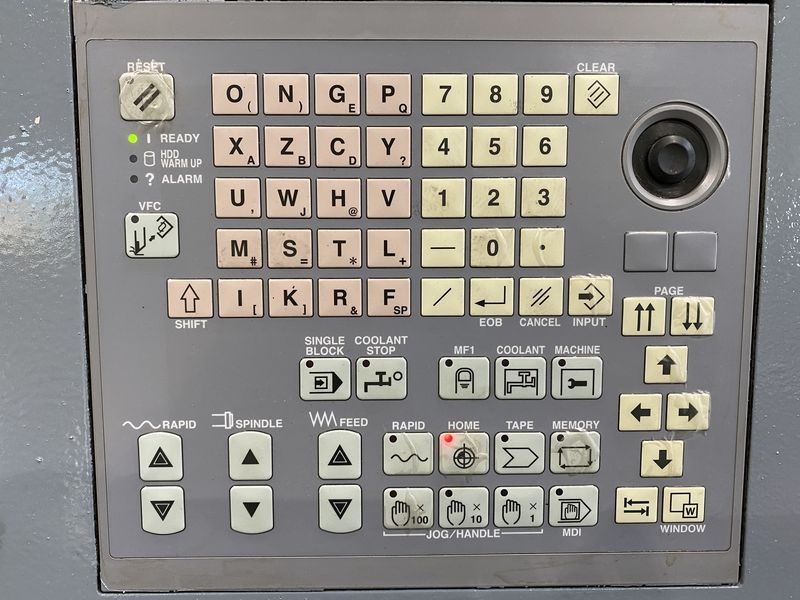

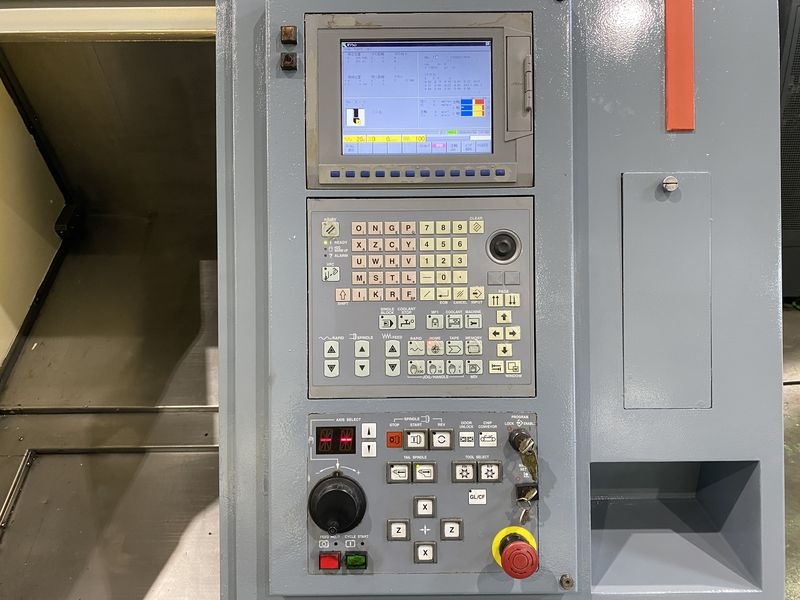

- Control : MAZATROL 640T NEXUS
Swing on bed: φ610 mm
Swing over cross slide: φ350 mm
Max. work diameter : 350 mm
Max. work length : 514 mm
Maximum load capacity: chuck 300 kg center 700 kg
Travel X : 190 Z : 535 mm
Spindle speed : 4,200rpm
Through-spindle hole diameter : φ76 mm

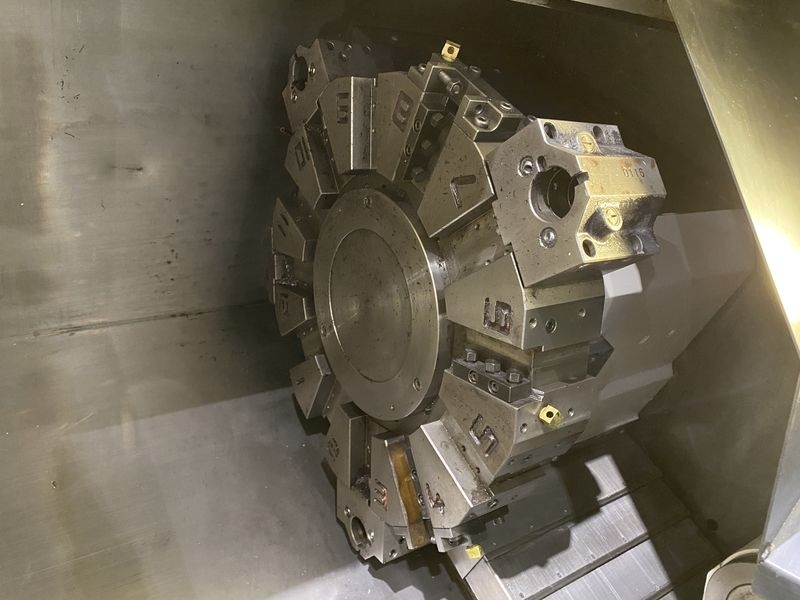

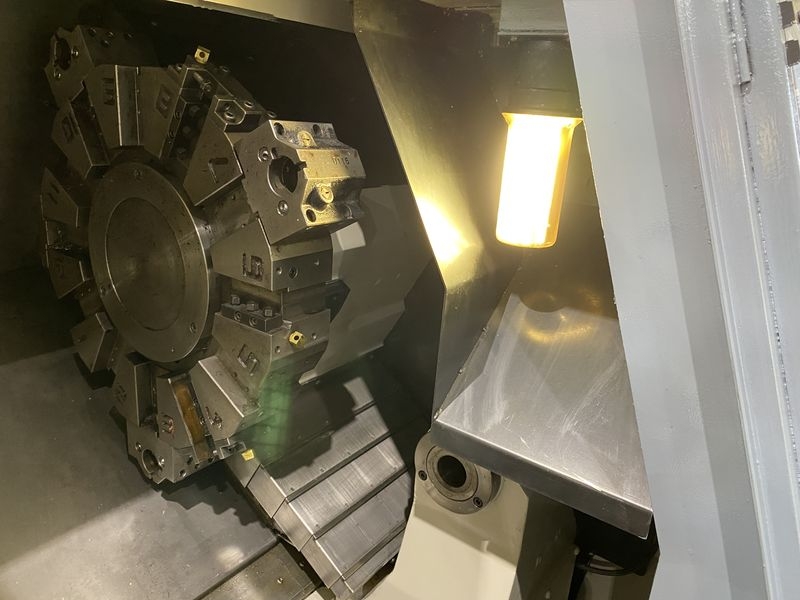

Tarret : 12 stations
Travel of tail stock : 550 mm
Tapered hole: MT NO.5
Required floor surface : 2,200 x 1,780 mm
Machine height : 1,840 mm

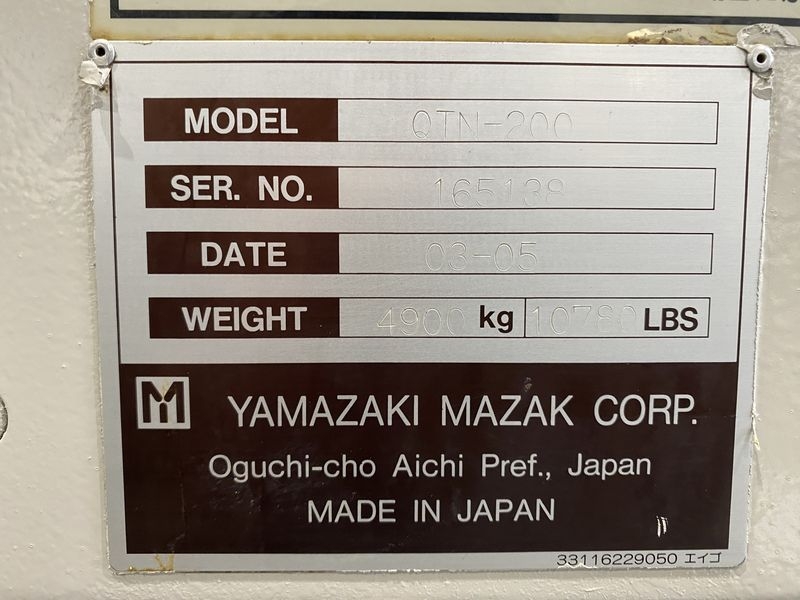

Machine weight : 4,900 kg
2025: Spindle replaced with new one

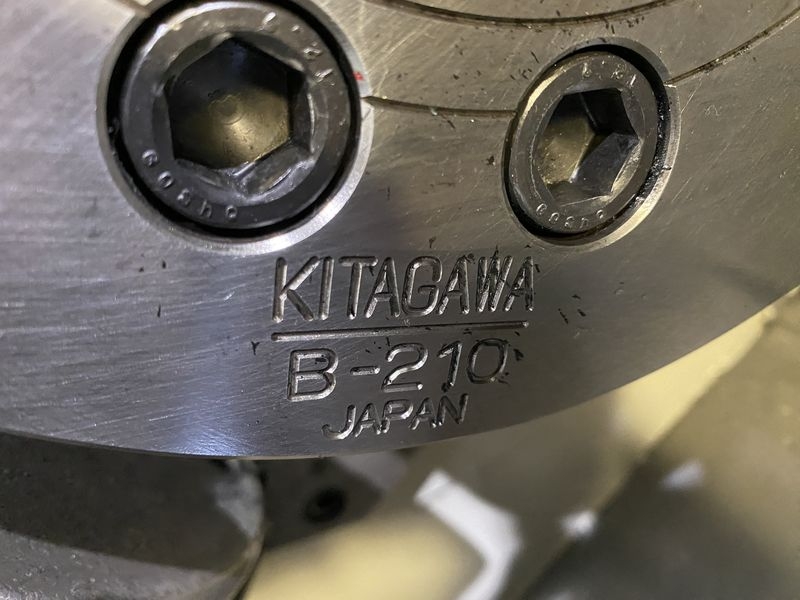

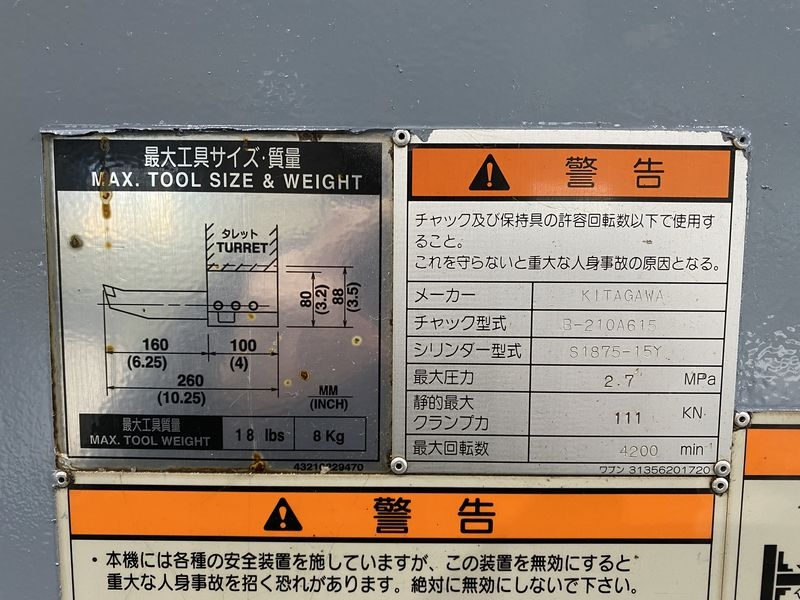

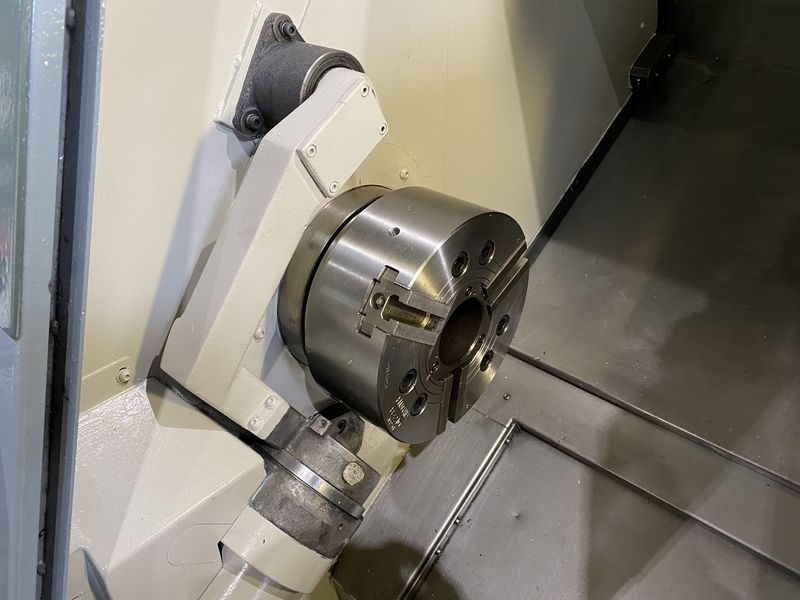

10-inch hollow hydraulic chuck (Kitagawa B-210)
Chuck cylinder (S1875-5Y)

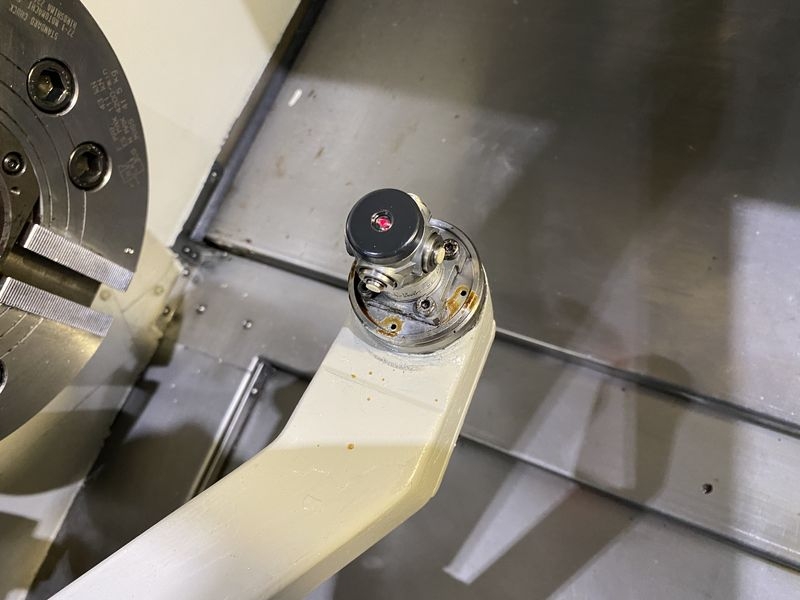

Tool Eye

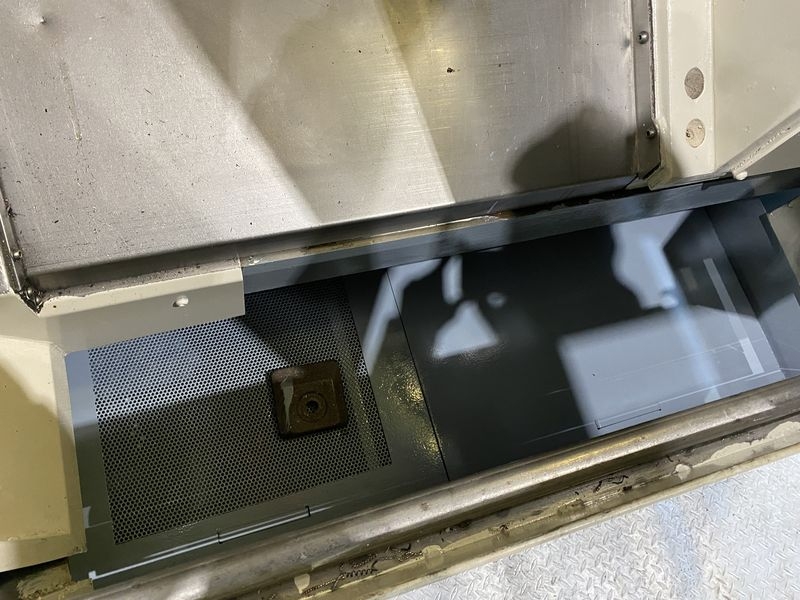

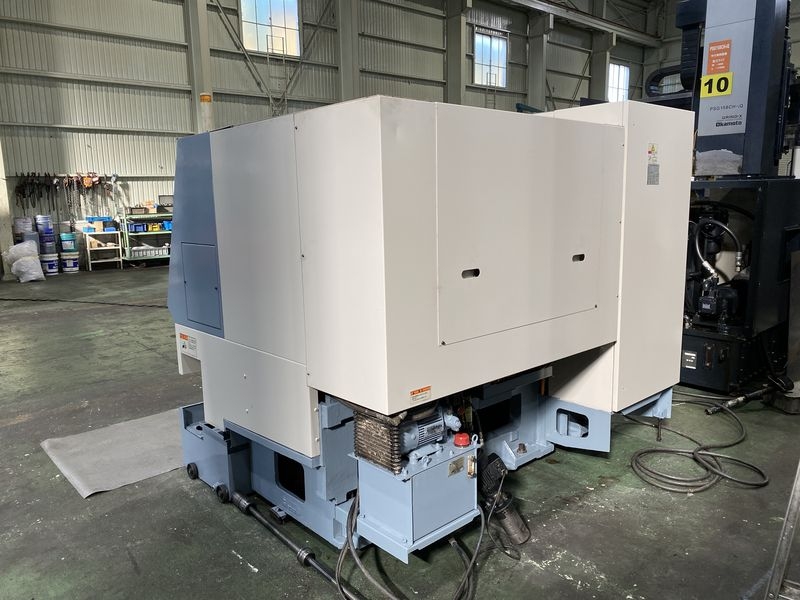

150-liter coolant system
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
