DETAIL
- Item No
0000000832
- Comment

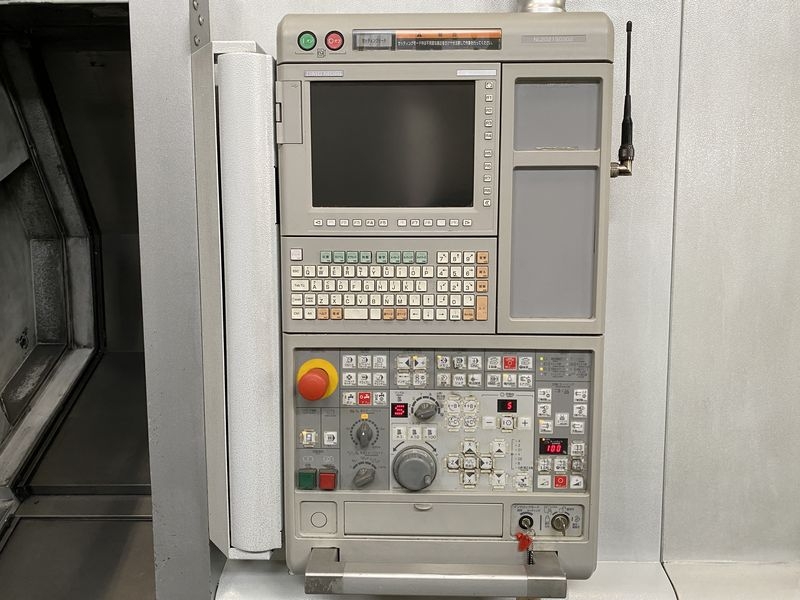

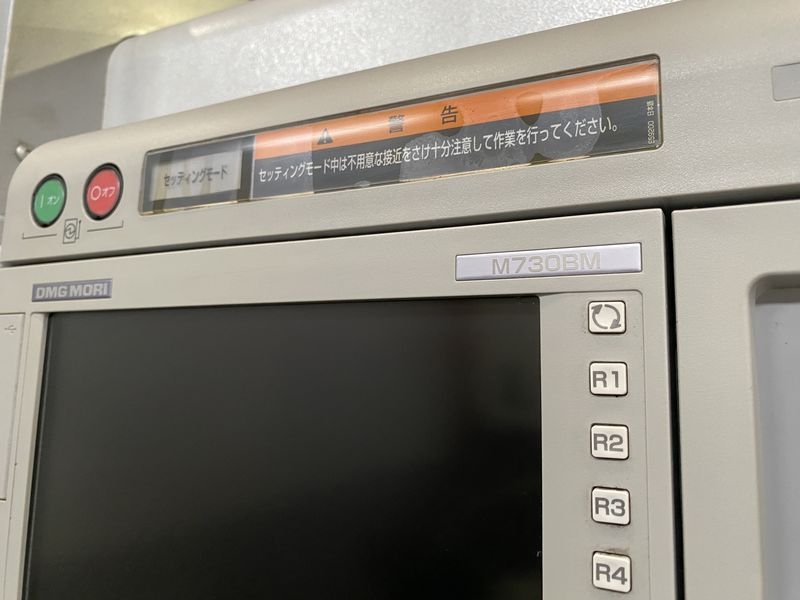

- Controller：M-730BM
Swing over bed：923 mm
Swing over cross slide：755 mm
Max. turning diameter：366 mm
Std. turning diameter：271 mm
Max. turning length：510 mm
Travel X：260 Z：590 mm
Spindle speed：5,000 rpm
Spindle speed range：2
Min. indexing：C: 0.001°
Through-spindle hole diameter：φ73 mm
Spindle taper：JIS A2-6

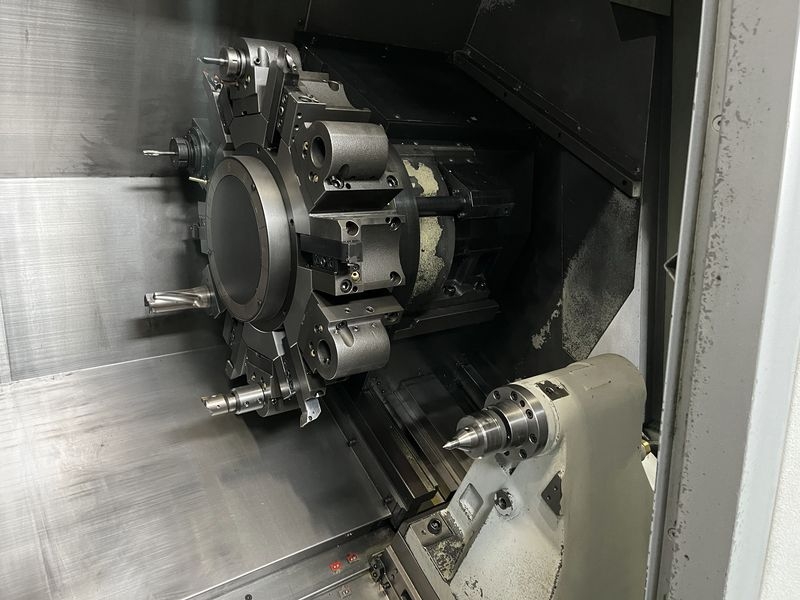

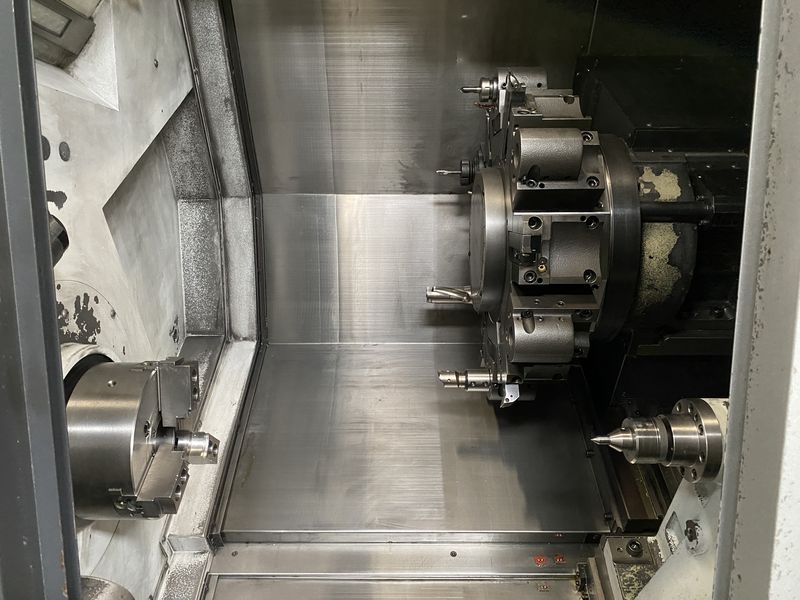

Turret：12 stations
Milling spindle speed：10,000 rpm

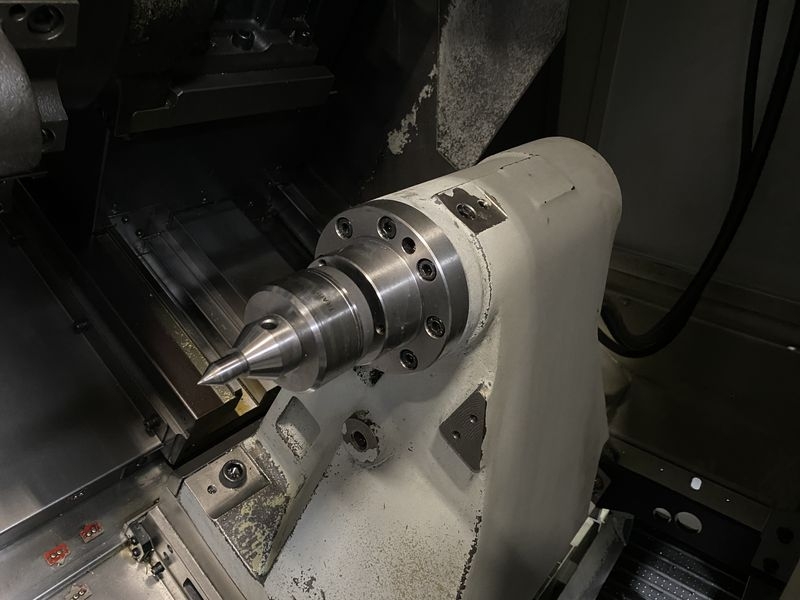

Tailstock travel：564 mm
Tailstock taper：MT4
Required floor space：3,599 × 2,100 mm
Machine height：2,120 mm
Machine weight：5,400 kg

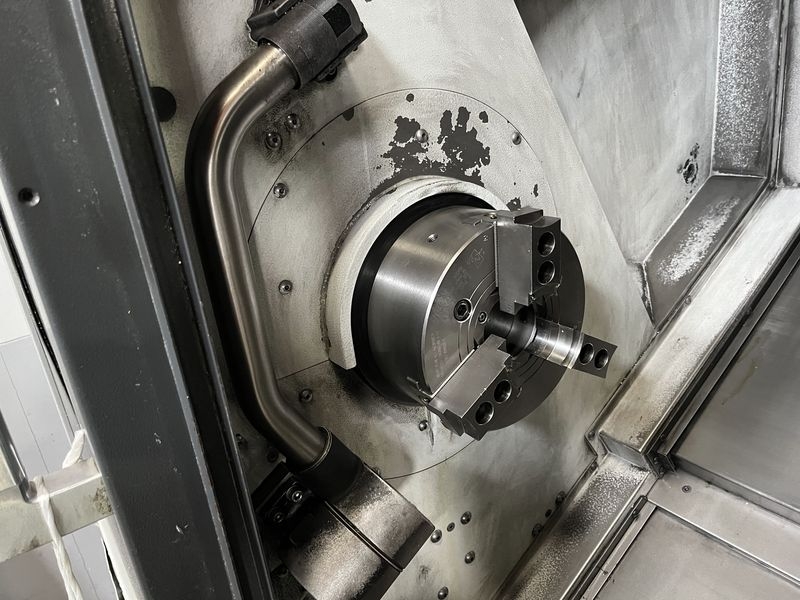

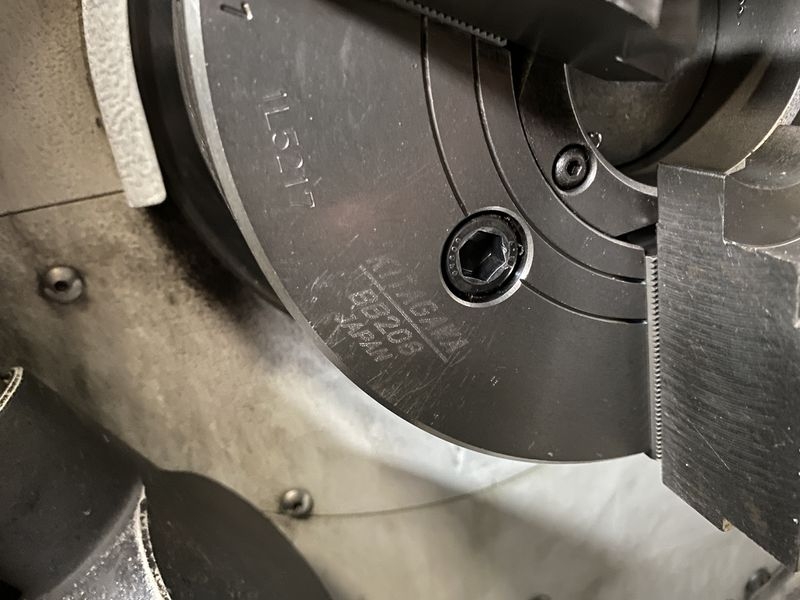

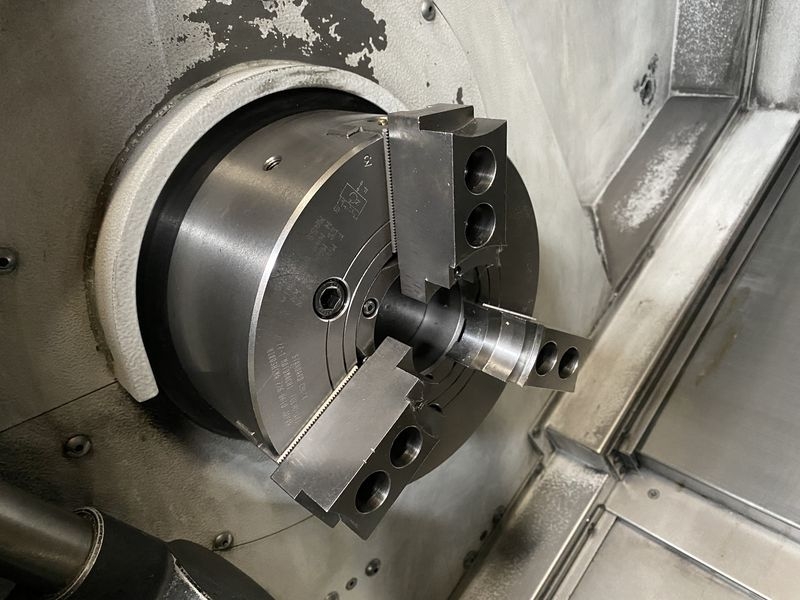

8"Hydraulic hollow 3-jaw chuck

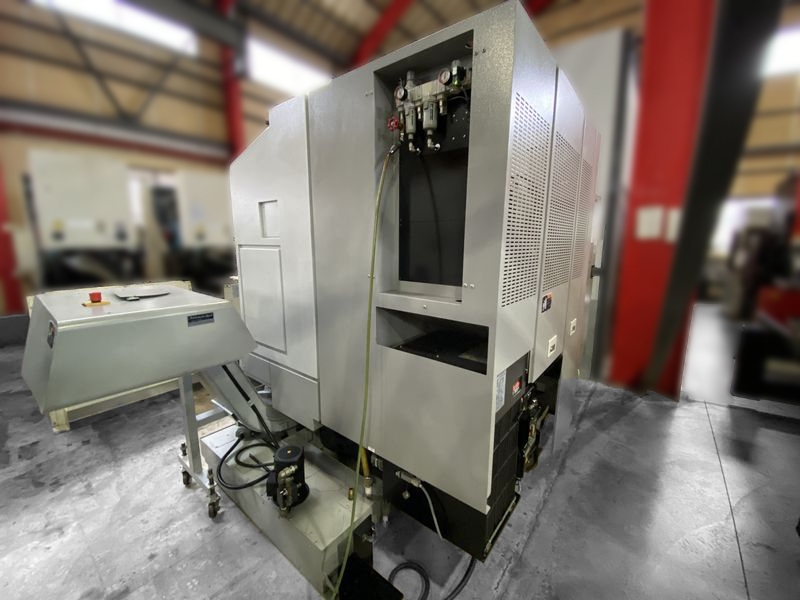

Chip conveyor (Right)
In-machine tool presetter
MAPPSⅣB
Program memory capacity 2MB 320m
Number of registerable programs 200
Custom macro common variable 200
Click on the picture for larger view.
*The machine condition shall be understood "AS IS", regardless of specifications and photos in the machine list.
